ALTM-01 Air Leak Testing Machine
Quality Assurance | Accurate Testing | Zero DefectParagraph 1: The TAUR SPM Air Leak Testing Machine is designed to detect leakage in components using compressed air technology. It is widely used across industries such as automotive, electrical, plastic, and pharmaceuticals to ensure product quality and reliability. Paragraph 2: This machine offers high-precision testing with methods like pressure decay, mass flow, differential pressure, and vacuum testing. It supports pressure ranges from -0.6 to 10 bar (customizable) with a resolution of 0.01 bar / 0.1 Pa. Equipped with a PLC-based control system and 7-inch touch screen HMI, it ensures accurate, fast, and repeatable results. Paragraph 3: The system improves product quality by minimizing rejection rates and ensuring zero leakage defects. With a user-friendly interface, low maintenance design, and energy-efficient operation, it is ideal for continuous 24/7 industrial use.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- High Sensitivity & Accuracy Detects even micro leaks with precision
- Fast Cycle Time Reduces testing time and increases productivity
- Digital Pressure Control Stable and accurate pressure regulation
- Leak Value Display Real-time leak measurement on HMI
- Recipe Management Stores multiple test programs (optional)
- Data Logging & Reports Tracks and records testing data (optional)
- Compact Design Space-saving and robust construction
- Low Maintenance Durable components with long service life
- 🔹 Specifications (Specs)
- Label Value
- Test Pressure -0.6 to 10 Bar (Customizable)

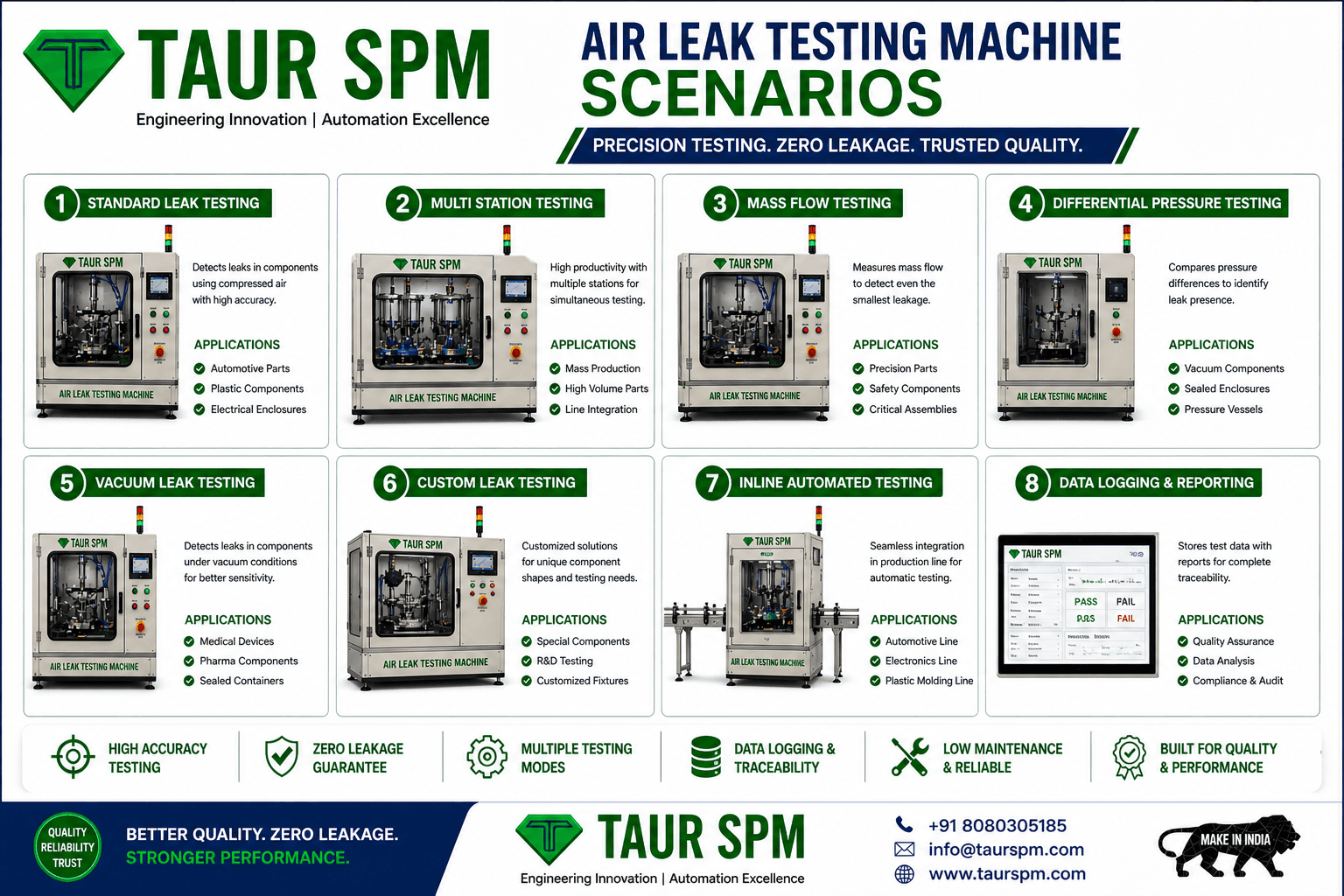

- Test Method Pressure Decay / Mass Flow / Differential Pressure / Vacuum
- Resolution 0.01 Bar / 0.1 Pa
- Test Time 1 to 60 Sec (Adjustable)
- Air Supply 4 – 7 Bar, Clean & Dry Air
- Air Consumption 50 – 200 LPM
- Display 7” Touch Screen HMI
- Power Supply 230V AC / 50Hz / 1 Phase
- Data Storage Yes (Optional)
- Control System PLC Based

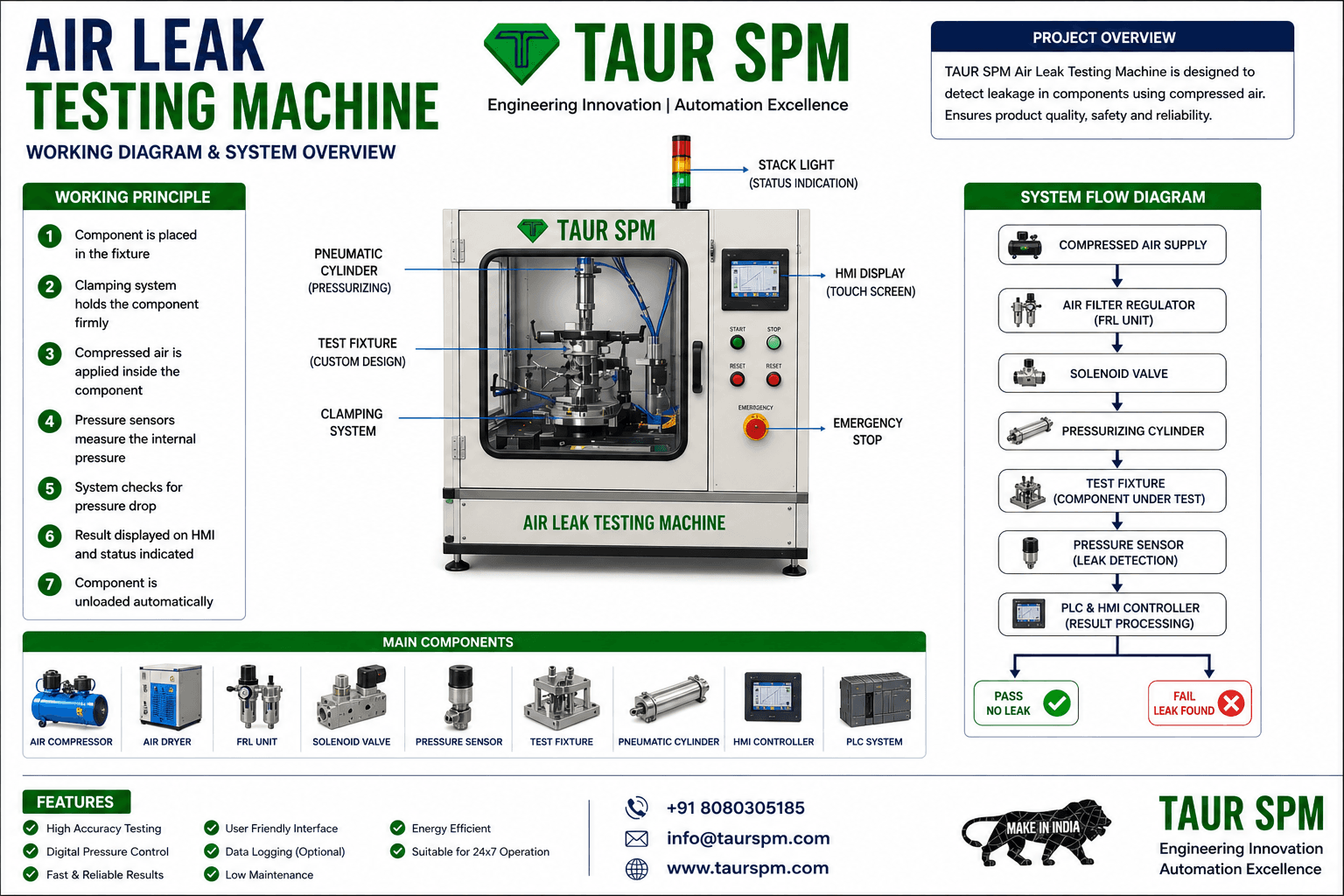

- 🔹 Product Functions (one per line)
- Component Loading
- Fixture Clamping
- Air Pressurizing
- Leak Testing
- Result Analysis (Pass/Fail)
- Component Unloading
- Data Recording
- Alarm & Indication System
- Automated Test Cycle
- Integration with Production Line
