AP-01 Assembly Feeder Line
Automatic Feeding & Assembly System for Nut, Bolt & Small PartsParagraph 1 (Overview): The Assembly Feeder Line by TAUR SPM is an advanced automation system designed for efficient feeding, orientation, and assembly of small components such as nuts, bolts, washers, and other precision parts. It is widely used in automotive, electronics, hardware, and general manufacturing industries to streamline assembly operations and minimize manual intervention. Paragraph 2 (Performance): This system integrates vibratory bowl feeders, linear tracks, servo-driven pick-and-place units, and torque-controlled assembly stations to ensure high-speed and accurate operations. With PLC and HMI-based control, it offers seamless automation, consistent part handling, and real-time monitoring, delivering production capacity of up to 30–60 parts per minute depending on part type. Paragraph 3 (Benefits): The Assembly Feeder Line significantly improves productivity, reduces labor costs, and ensures consistent quality output. Its modular and customizable design allows easy integration into existing production lines, while its robust construction ensures long-term durability, low maintenance, and reliable performance.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Automatic Part Feeding Vibratory bowl feeder ensures smooth and continuous feeding
- High-Speed Assembly Handles up to 60 parts per minute
- Servo Pick & Place Accurate and fast component placement
- Torque Control System Ensures precise nut and bolt tightening
- PLC & HMI Control Easy operation with smart interface
- Quality Inspection Sensor-based defect detection system
- Modular Design Easy customization and expansion
- Low Maintenance Durable components with minimal service requirement
- Safety System Integrated safety guards and emergency stop
- Flexible Application Suitable for multiple part types
- 🔹 Specifications (Specs)
- Label Value
- Part Type Nut, Bolt, Washer, Spacer, Small Parts
- Part Size M3 to M12 (Customizable)
- Production Capacity 30 – 60 Parts/Minute
- Power Supply 415V AC, 3 Phase, 50Hz
- Compressed Air 6 – 8 Bar
- Control System Siemens PLC with HMI
- Drive System Servo Motor & Pneumatic
- Assembly Method Pick & Place + Torque Tightening
- Inspection System Sensor-based Quality Check
- Overall Dimension 6000 × 1200 × 1800 mm
- Weight 1200 – 1500 kg
- Safety Features Emergency Stop, Safety Relay
- Material Mild Steel Structure with Powder Coating

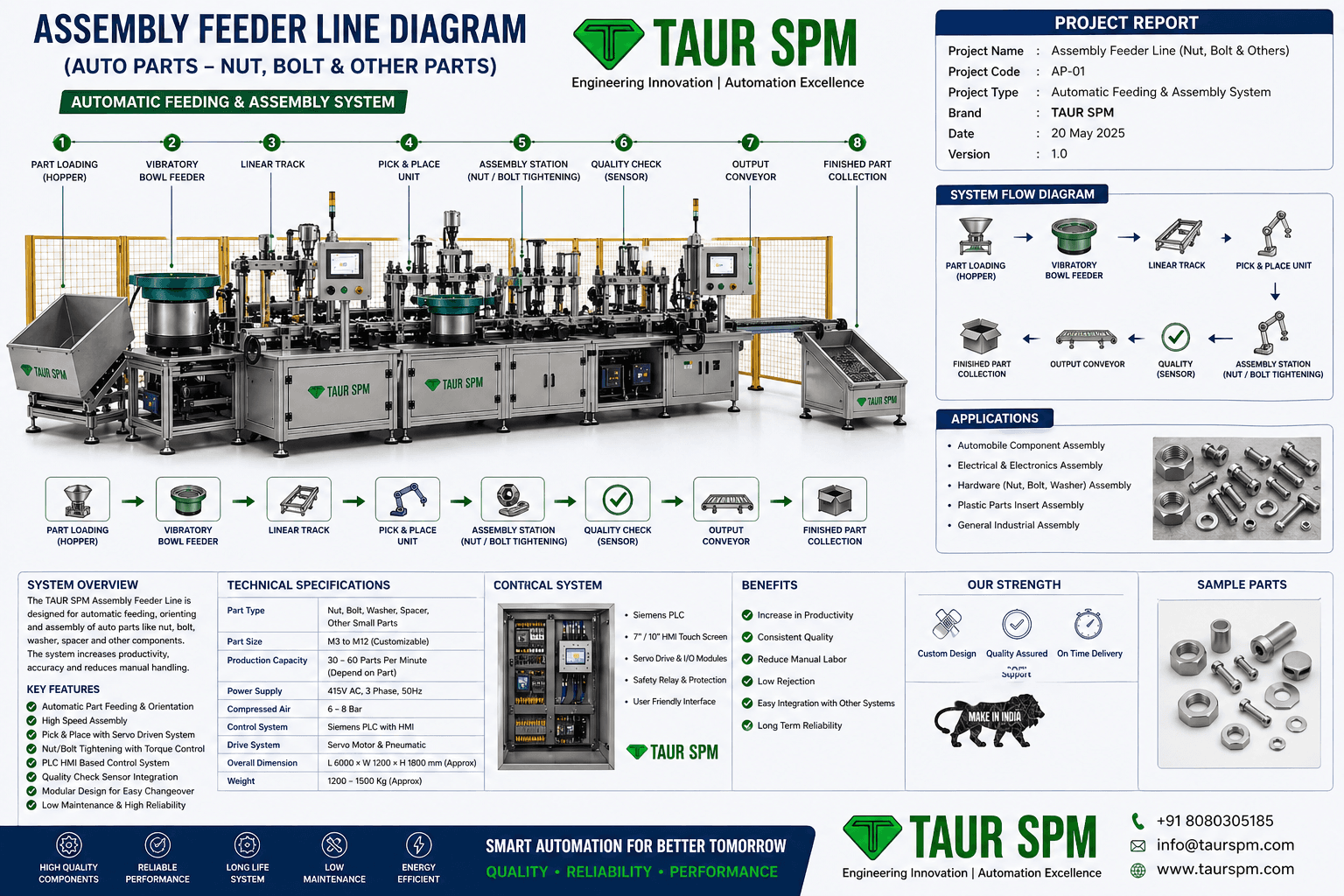

- 🔹 Product Functions
- Part Feeding
- Part Orientation
- Linear Transfer
- Pick & Place Operation
- Nut & Bolt Assembly
- Torque Tightening
- Quality Inspection
- Part Sorting
- Output Conveying
- Finished Product Collection
