APS-01 Automatic Palletizer System
Final Goods Stacking for DispatchParagraph 1: The Automatic Palletizer System is a high-performance automation solution designed for stacking finished goods such as cartons, bags, boxes, bottles, and cans onto pallets for dispatch. It is widely used in industries like FMCG, food & beverage, pharmaceuticals, logistics, and manufacturing to streamline end-of-line packaging operations. Paragraph 2: This system offers high-speed and high-accuracy palletizing with robotic pick-and-place technology. It includes product infeed conveyors, layer forming units, and advanced robotic arms with multiple gripper options such as vacuum, mechanical, and magnetic grippers. The system ensures consistent layer stacking and supports various palletizing patterns with flexible configurations. Paragraph 3: Designed for efficiency and safety, the palletizer reduces manual labor and operational risks while increasing productivity. Its robust construction, low maintenance requirements, and energy-efficient operation make it a reliable and cost-effective solution for modern industrial environments.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- High-Speed Operation Enables fast palletizing for high production lines
- Robotic Pick & Place Advanced robotic arm for accurate stacking
- Flexible Palletizing Supports multiple product types and patterns
- Layer Forming System Ensures precise and uniform layer stacking
- Multiple Gripper Options Vacuum, mechanical, magnetic, and custom grippers
- PLC & HMI Control Siemens PLC with touch screen interface
- Safety System Guarding, light curtains, and emergency stop
- Energy Efficient Optimized for low power consumption
- 🔹 Specifications (Specs)
- Label Value
- Payload Capacity Up to 50 kg (Per Grip)
- Palletizing Speed Up to 8 – 12 layers/min (depends on product)
- Applicable Products Cartons, Bags, Boxes, Bottles, Cans
- Pallet Size 800 – 1200 mm (W), 800 – 1200 mm (L) (Customizable)
- Pallet Height Up to 2000 mm (Customizable)
- Power Supply 415V AC, 3 Phase, 50Hz
- Power Consumption 5 – 15 kW (Depending on system)
- Air Supply 6 – 8 Bar (Clean & Dry Air)
- Control System Siemens PLC with HMI
- Robot Type Industrial Robot (4 Axis / 6 Axis)
- Safety System Safety Guard, Light Curtain, Emergency Stop
- Machine Weight 1500 – 6000 kg
- Overall Dimension As per layout & requirement

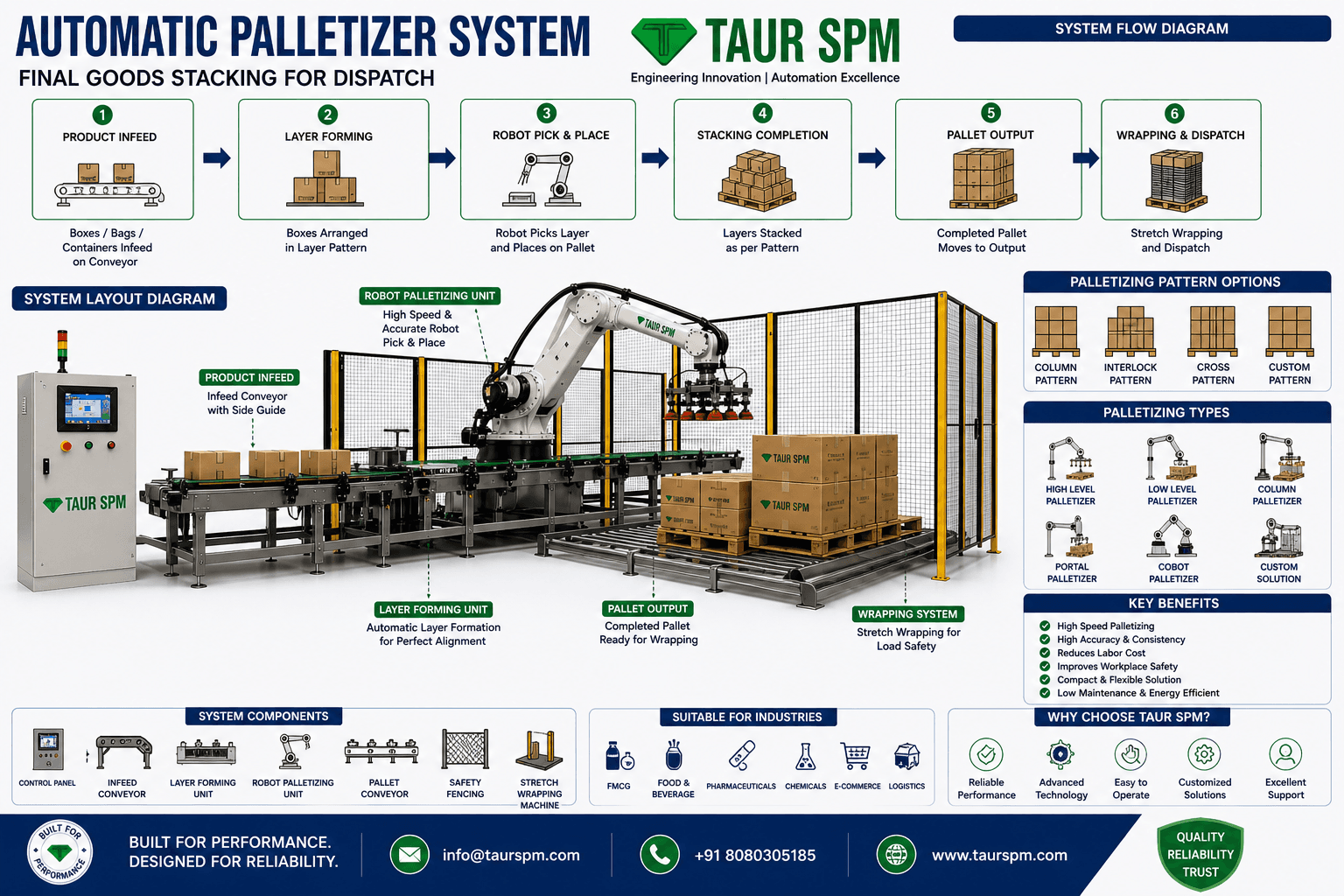

- 🔹 Product Functions (one per line)
- Product Infeed
- Product Grouping
- Layer Formation
- Robotic Pick & Place
- Layer Stacking
- Pallet Formation
- Pallet Completion
- Pallet Output
- Wrapping & Dispatch Preparation
- Automated End-of-Line Handling
