BSPM-01 Bottle Sorting Pneumatic Machine
High Speed | Accurate | Reliable Sorting Solution for Beverage IndustryParagraph 1: The TAUR SPM Bottle Sorting Pneumatic Machine is designed for high-speed sorting, orientation, and handling of bottles in the beverage industry. It ensures smooth automation of bottle flow across production lines, improving operational efficiency. Paragraph 2: This machine offers precise pneumatic control with sorting speeds up to 300 bottles per minute. It supports bottle diameters from 20 mm to 120 mm and heights from 50 mm to 350 mm. Equipped with PLC/HMI control, it operates with 4–6 bar air pressure and consumes 80–150 LPM air, ensuring reliable and consistent performance. Paragraph 3: The system minimizes bottle damage, reduces manpower, and ensures hygienic and safe operation. With low maintenance requirements and easy changeover features, it is ideal for continuous 24/7 industrial use.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- High-Speed Sorting Handles up to 300 bottles per minute
- Pneumatic Precision Accurate bottle positioning and sorting
- Adjustable System Supports multiple bottle sizes
- Low Maintenance Durable design with minimal servicing
- User-Friendly Interface PLC + HMI based operation
- Easy Changeover Quick adjustments for different bottle types
- Hygienic Operation Suitable for beverage industry standards
- Energy Efficient Optimized air and power consumption

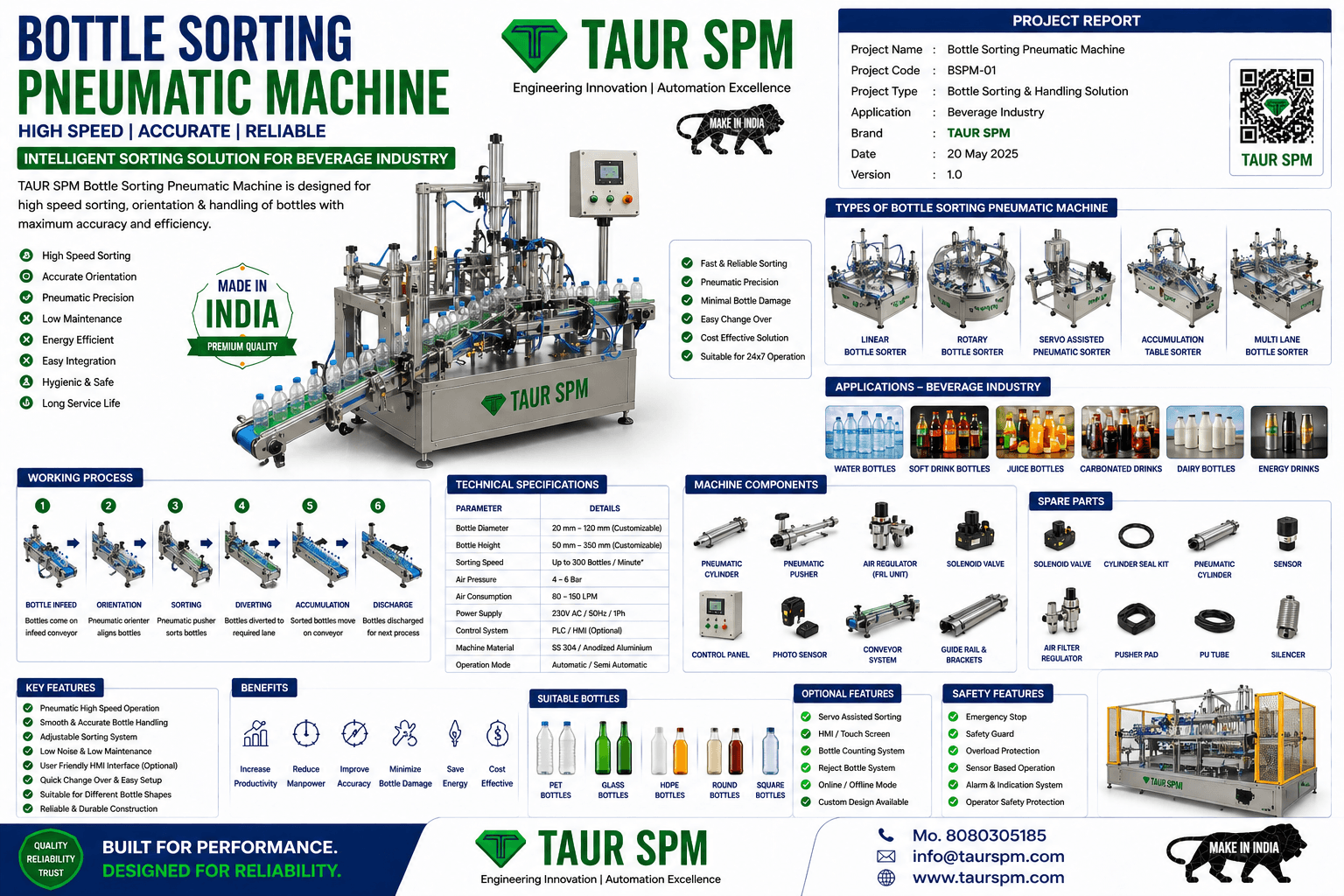

- 🔹 Specifications (Specs)
- Label Value
- Bottle Diameter 20 mm – 120 mm (Customizable)
- Bottle Height 50 mm – 350 mm (Customizable)
- Sorting Speed Up to 300 Bottles/Minute
- Air Pressure 4 – 6 Bar
- Air Consumption 80 – 150 LPM
- Power Supply 230V AC / 50Hz / 1 Phase
- Control System PLC / HMI (Optional)
- Machine Material SS 304 / Anodized Aluminium
- Operation Mode Automatic / Semi-Automatic

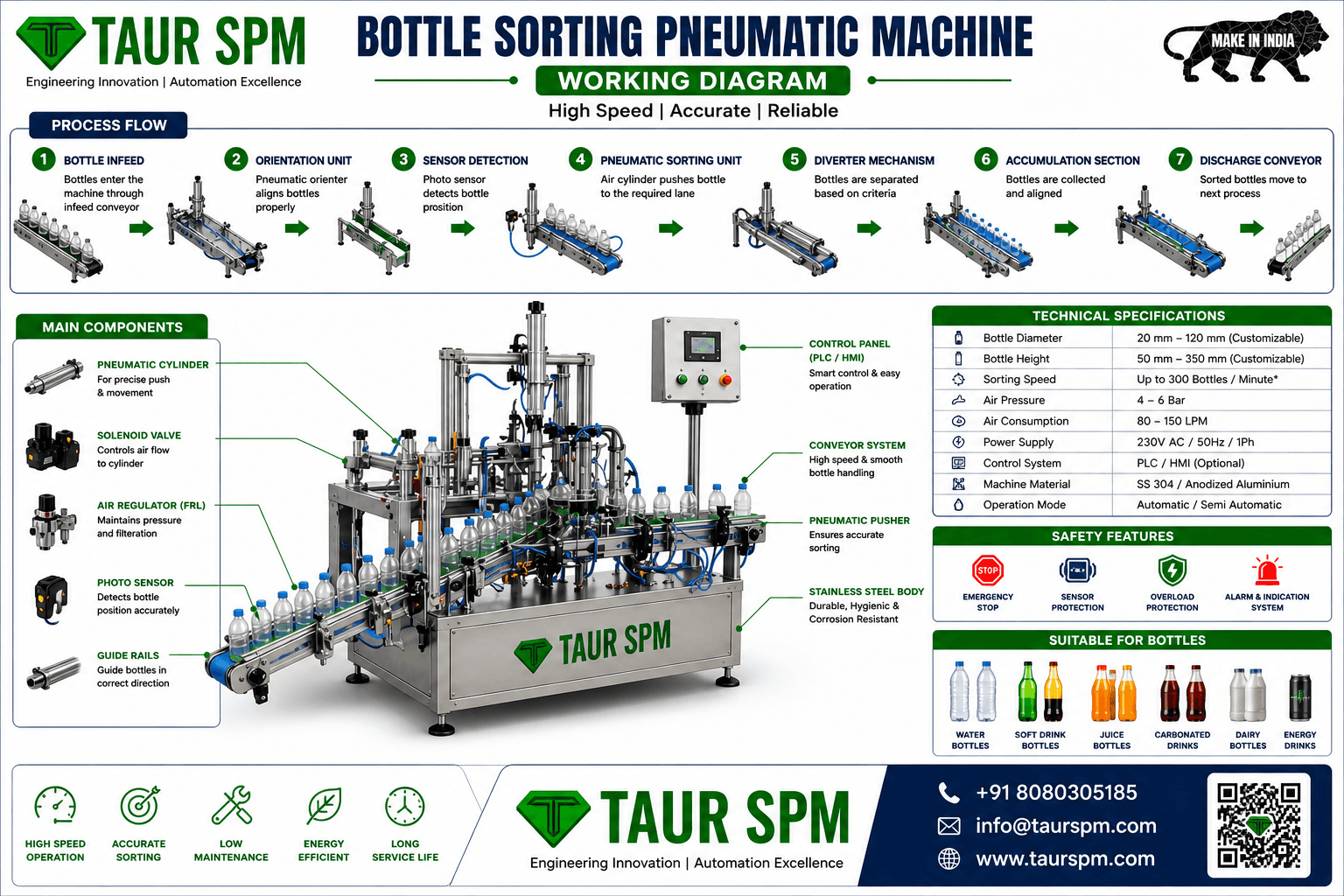

- 🔹 Product Functions (one per line)
- Bottle Infeed Handling
- Bottle Orientation
- Bottle Sorting
- Bottle Diverting
- Bottle Accumulation
- Bottle Discharge
- Size-Based Sorting
- Weight-Based Sorting (Optional)
- Color Detection Sorting (Optional)
- Automated Conveyor Integration
