CBSS-01 Conveyor-Based Sorting System
Smart Automated Sorting by Size, Weight, Color, Shape & MoreParagraph 1 (Overview): The Conveyor-Based Sorting System by TAUR SPM is an advanced automation solution designed to sort materials based on size, weight, color, shape, barcode, and metal detection parameters. It is widely used in industries such as logistics, pharmaceuticals, food processing, electronics, and manufacturing to streamline sorting operations and improve efficiency. Paragraph 2 (Performance): This system utilizes high-speed conveyor transport combined with precision sensors like photoelectric, laser, load cells, barcode scanners, and metal detectors. With sorting speeds up to 120 items per minute and accuracy up to 99.5%, it ensures reliable and consistent performance. The system is powered by a PLC & HMI interface for real-time monitoring and control. Paragraph 3 (Benefits): The system enhances productivity, reduces manual labor, and ensures accurate sorting with minimal errors. Its modular design allows easy expansion and customization, while its robust construction ensures durability, low maintenance, and long-term reliability in demanding industrial environments.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Multi-Parameter Sorting Sorts by size, weight, color, shape, barcode, metal
- High-Speed Operation Up to 120 items per minute
- High Accuracy Sorting accuracy up to 99.5%
- Smart Sensor Integration Advanced sensors for precise detection
- PLC & HMI Control User-friendly automation control system
- Modular Design Easy expansion and customization
- Real-Time Monitoring Data logging and reporting system
- Low Maintenance Durable and reliable components
- User-Friendly Interface Simple operation and control
- Custom Sorting Options Tailored solutions for different industries
- 🔹 Specifications (Specs)
- Label Value
- Conveyor Type Belt / Roller / Modular
- Conveyor Width 300 mm – 1200 mm (Customizable)
- Sorting Speed 20 – 120 Items/Minute
- Sorting Accuracy Up to 99.5%
- Sorting Parameters Size, Weight, Color, Shape, Barcode, Metal
- Sensor Type Photoelectric, Color, Laser, Load Cell
- Detection System Barcode Scanner, Metal Detector
- Actuator Type Pneumatic Pusher / Air Jet / Robotic Arm / Tilt Tray
- Control System Siemens PLC with HMI
- Power Supply 415V AC, 3 Phase, 50Hz
- Power Consumption 1.5 – 5 kW
- Air Supply 6 – 8 Bar (if pneumatic system used)
- Frame Material Mild Steel / Stainless Steel

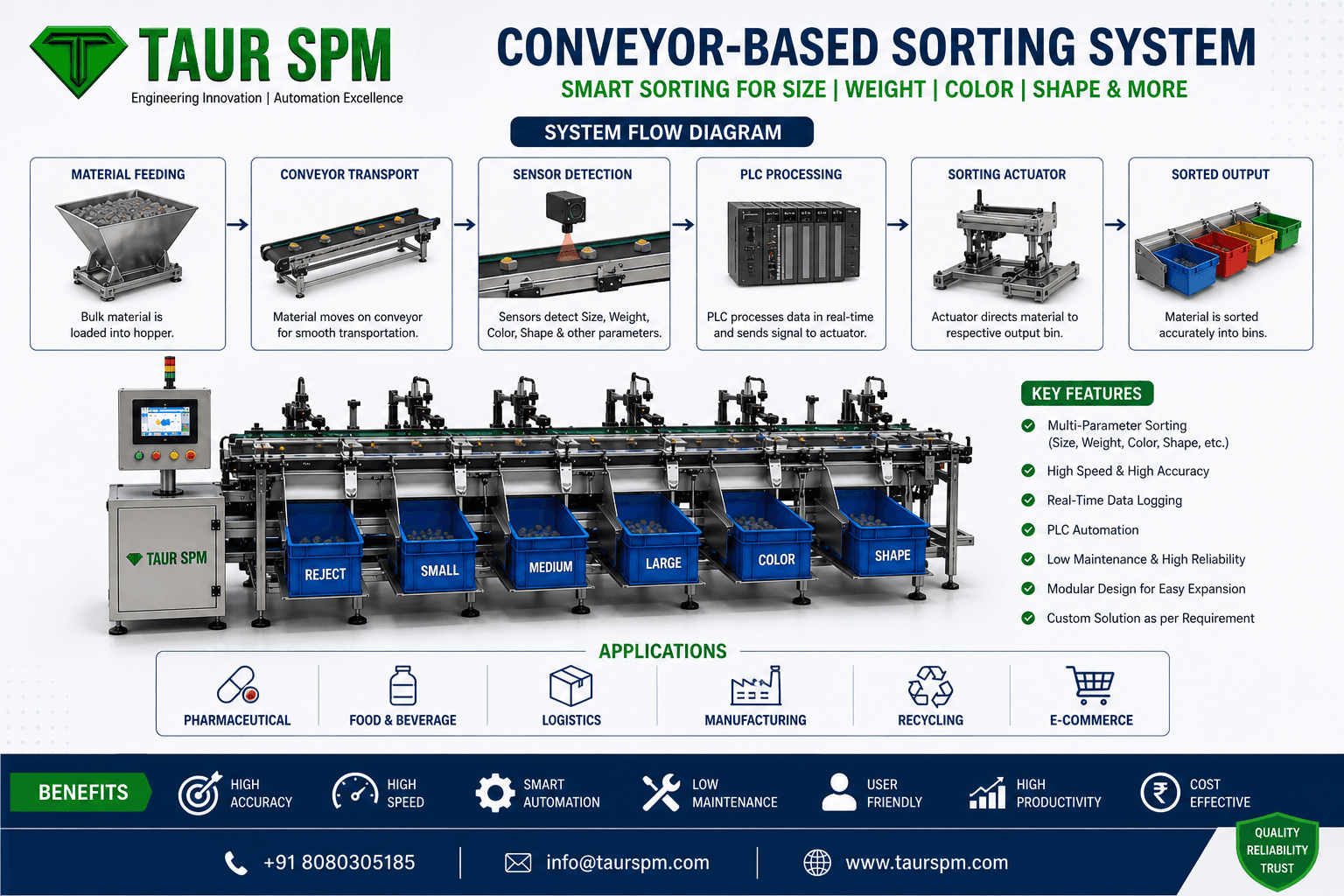

- 🔹 Product Functions
- Material Feeding
- Conveyor Transport
- Sensor Detection
- Data Processing
- Sorting Decision
- Actuator Operation
- Product Segregation
- Output Collection
- Data Logging
- Quality Control
