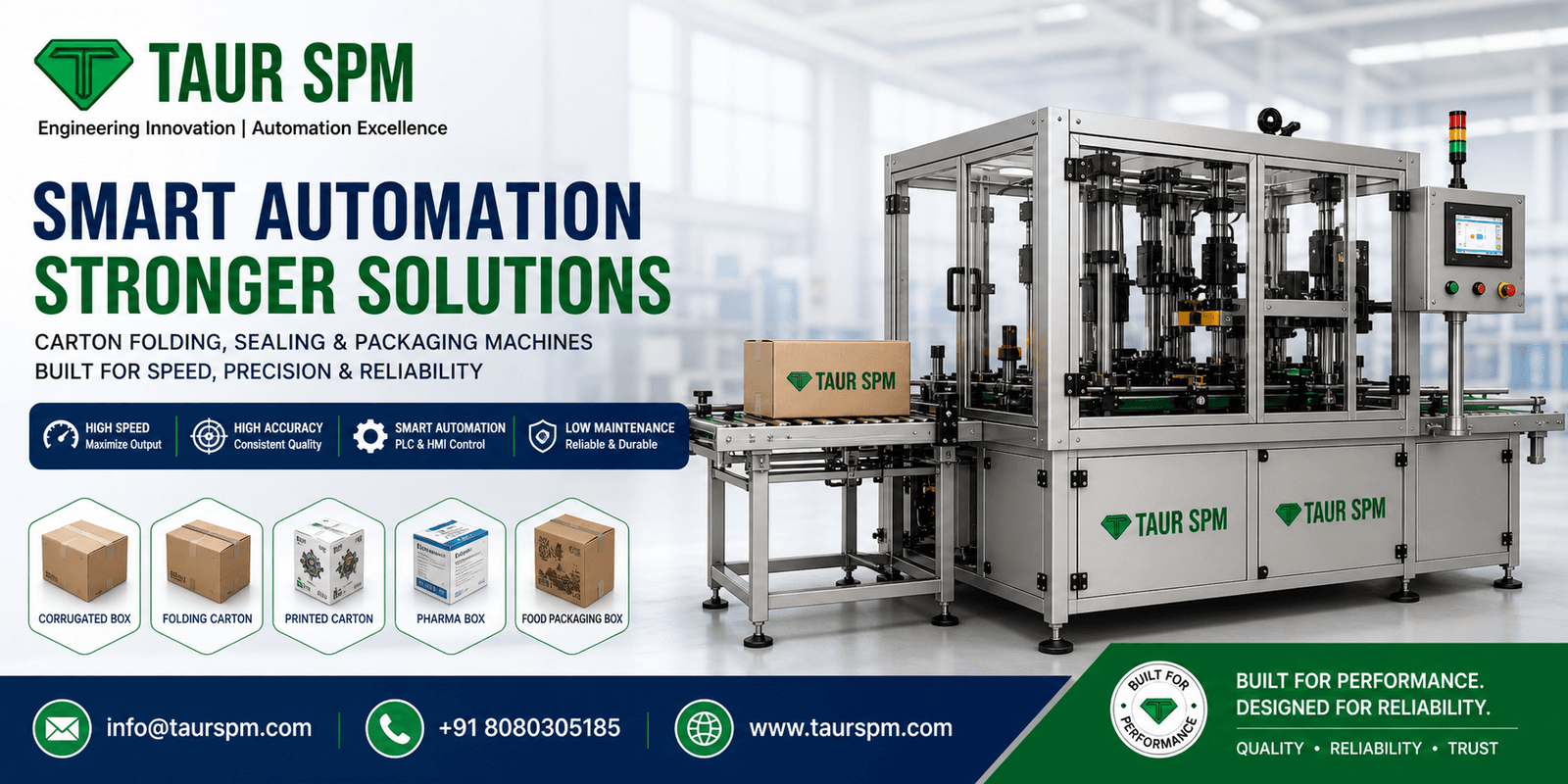

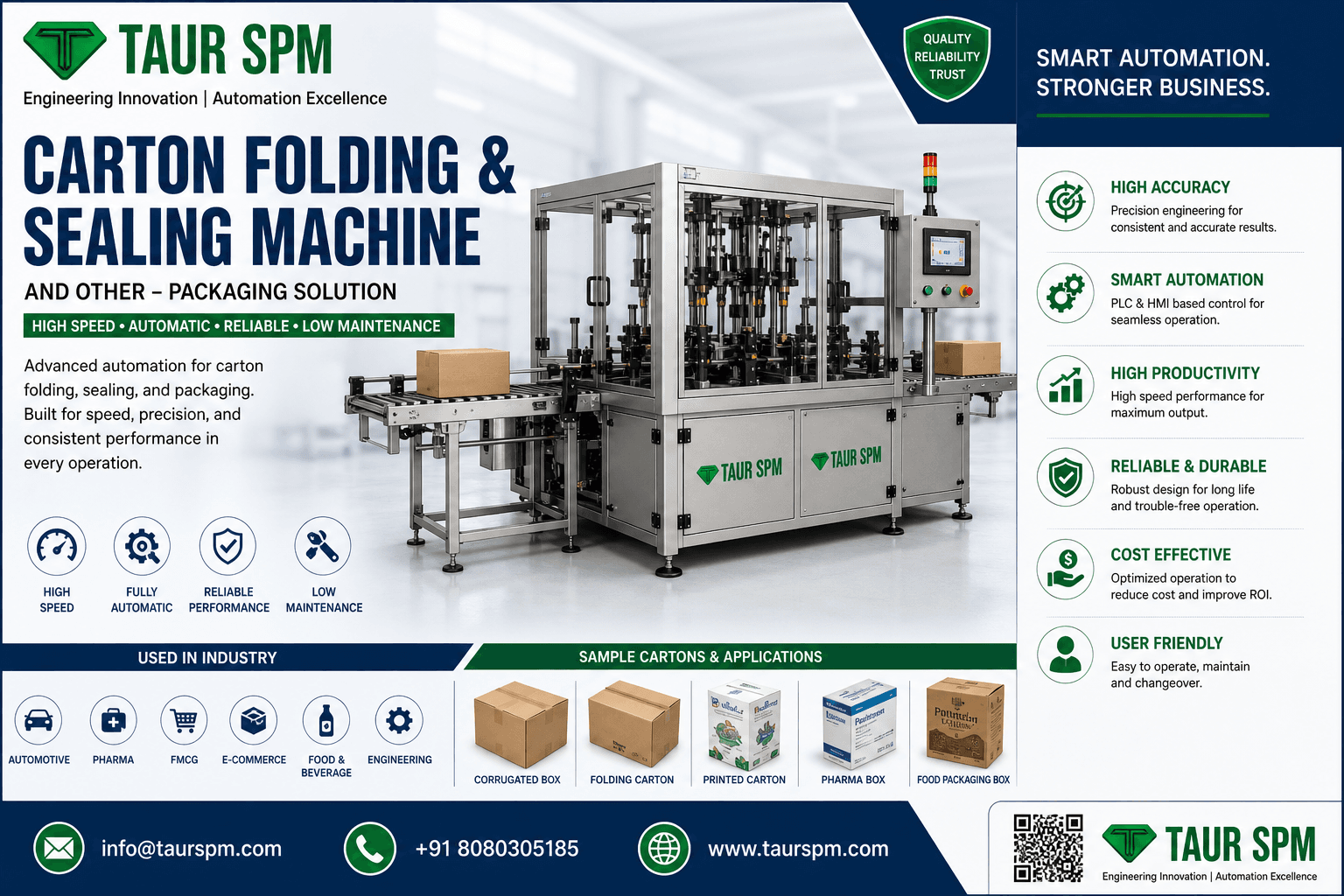

CF-01 Carton Folding & Sealing Machine
Automatic Carton Forming, Folding & Sealing SolutionParagraph 1: The Carton Folding & Sealing Machine is an advanced automation solution designed for efficient carton forming, bottom sealing, product loading, and top sealing. It is widely used across industries such as FMCG, food & beverage, pharmaceuticals, e-commerce, and logistics for streamlined packaging operations. Paragraph 2: This machine delivers high-speed performance with precision and reliability. It features automatic carton suction and forming, adjustable size compatibility, PLC-based control with HMI, and options for tape or hot melt sealing. With a capacity of up to 25 cartons per minute, it ensures smooth and continuous production flow. Paragraph 3: Built for durability and ease of use, the system reduces manual labor while improving consistency and productivity. Its user-friendly interface, low maintenance requirements, and robust construction make it a cost-effective and long-lasting packaging solution.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- High Speed Operation Processes up to 25 cartons per minute depending on size
- Automatic Carton Forming Suction-based system for accurate carton pickup
- Bottom Sealing Supports tape or hot melt sealing for strong grip
- Top Flap Folding Precise folding mechanism for uniform sealing
- Adjustable Design Compatible with multiple carton sizes
- PLC Control System Siemens PLC with HMI interface for easy operation
- Durable Build Industrial-grade materials ensure long life
- Smooth Conveyor Belt-driven system for consistent movement

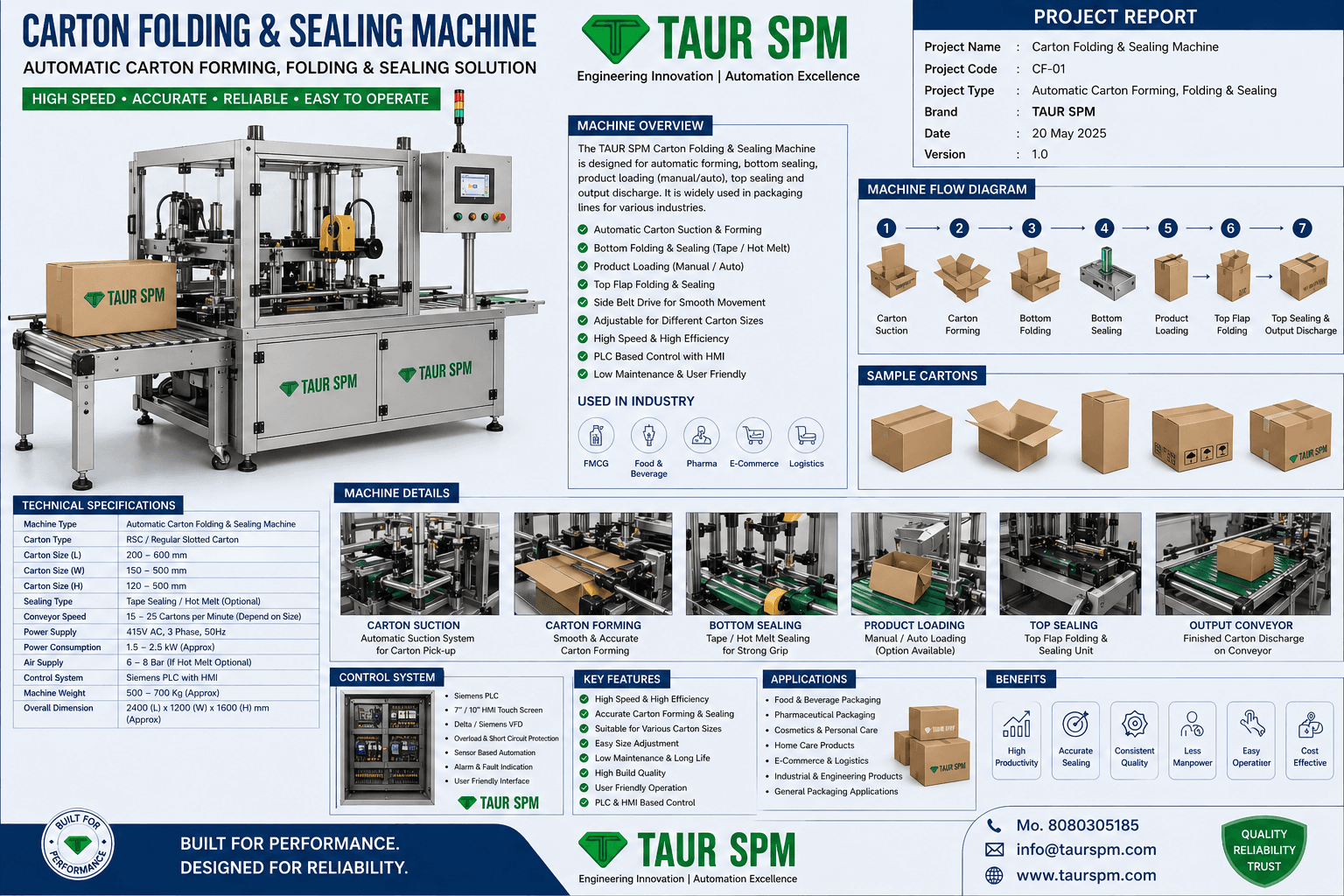

- 🔹 Specifications (Specs)
- Label Value
- Machine Type Automatic Carton Folding & Sealing Machine
- Carton Type RSC / Regular Slotted Carton
- Carton Size (L) 200 – 600 mm
- Carton Size (W) 150 – 500 mm
- Carton Size (H) 120 – 500 mm
- Sealing Type Tape / Hot Melt (Optional)
- Conveyor Speed 15 – 25 cartons/min
- Power Supply 415V AC, 3 Phase, 50Hz
- Power Consumption 1.5 – 2.5 kW
- Air Supply 6 – 8 Bar (for Hot Melt Optional)
- Control System Siemens PLC with HMI

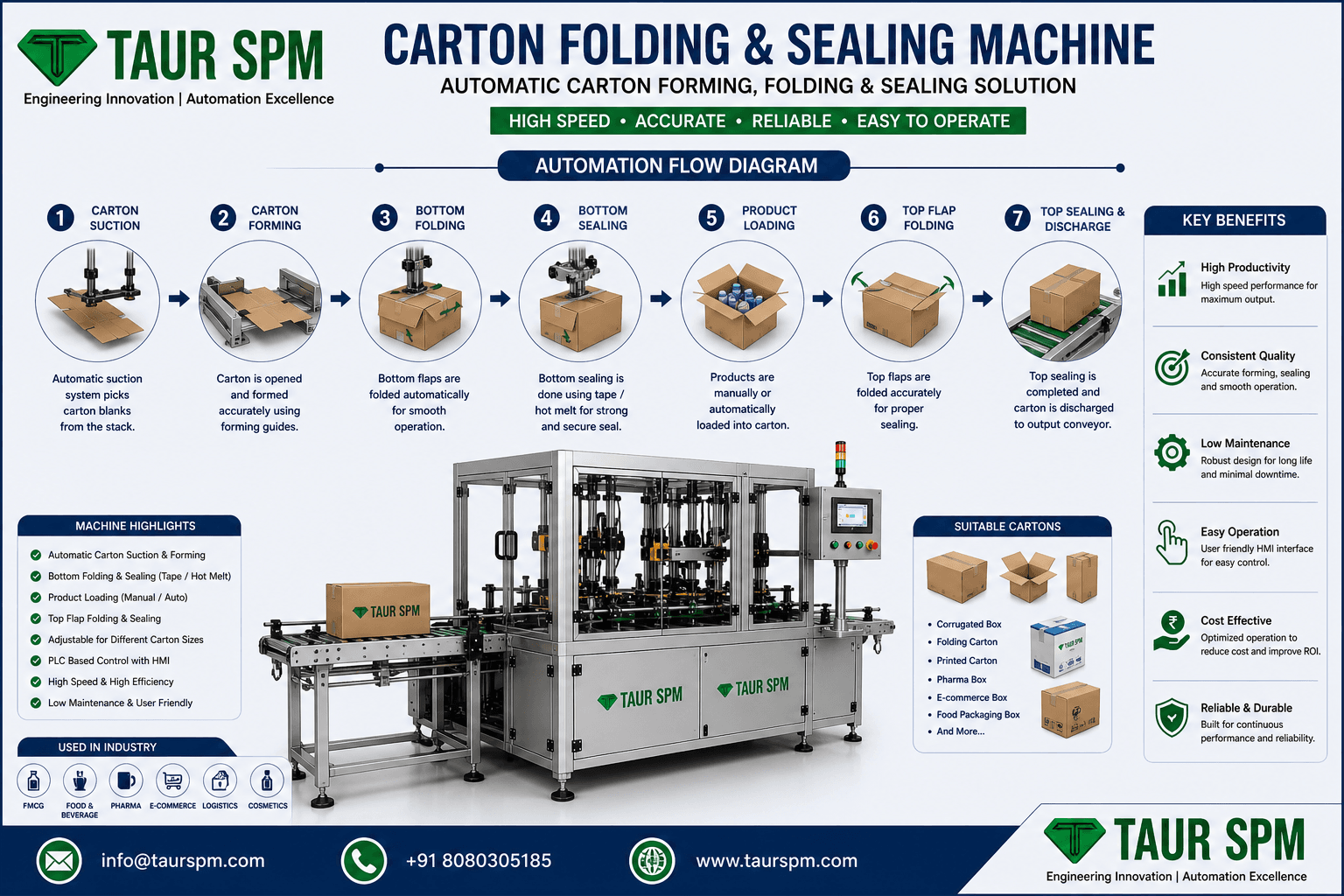

- 🔹 Product Functions (one per line)
- Carton Suction
- Carton Forming
- Bottom Folding
- Bottom Sealing
- Product Loading
- Top Flap Folding
- Top Sealing
- Output Discharge
- Conveyor Movement
- Automated Packaging Process
