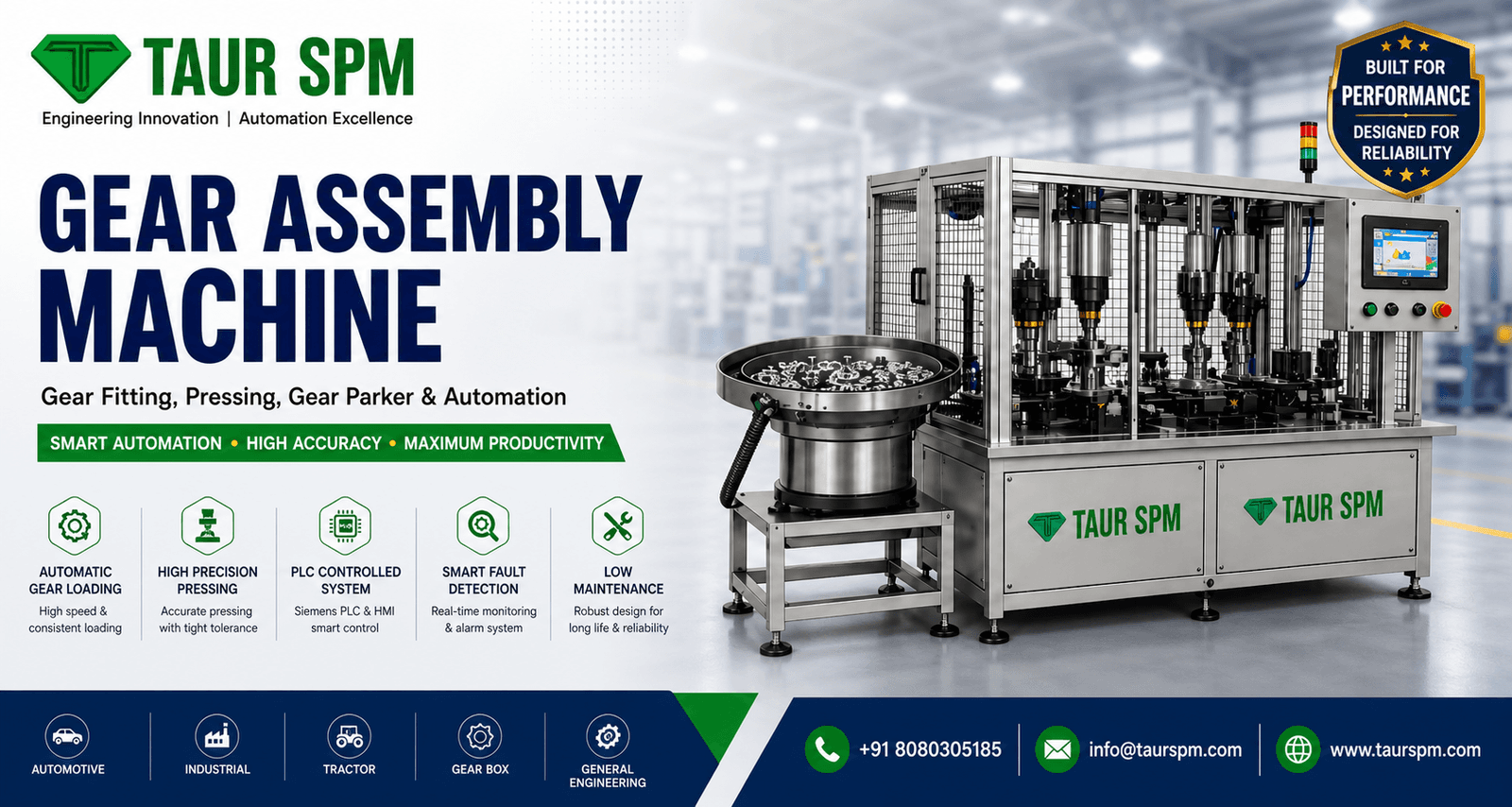

GA-01 Gear Assembly Machine
Automatic Gear Fitting, Pressing & Parker Assembly SystemParagraph 1 (Overview): The Gear Assembly Machine by TAUR SPM is an advanced automated system designed for gear fitting, pressing, parker/crimp operations, quality inspection, and unloading. It is widely used in automotive, industrial, and general engineering sectors to ensure precise and efficient gear assembly processes with minimal manual intervention. Paragraph 2 (Performance): This machine delivers high accuracy and repeatability with servo-driven systems and PLC & HMI-based automation. It supports gear modules from 0.5 to 6 and handles gear diameters up to 200 mm. With a cycle time of 6–12 seconds, it ensures high productivity while maintaining precision in pressing force (up to 20 tons) and consistent assembly quality. Paragraph 3 (Benefits): The system enhances production efficiency, reduces labor costs, and ensures consistent product quality. Its modular design allows easy changeover for different gear types, while integrated quality checks and fault detection systems improve reliability. Built with robust materials, it offers long service life, low maintenance, and dependable industrial performance.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
â–¼ Function
- 🔹 Features
- Feature Title Description
- Automatic Gear Loading Smooth feeding and orientation system
- Gear Fitting System Accurate gear placement and alignment
- Pressing Operation High-force pressing up to 20 tons
- Gear Parker / Crimp Secure locking and finishing process
- Servo Driven System High precision and repeatability
- PLC & HMI Control Smart automation with user-friendly interface
- Quality Inspection In-process and final quality checking
- Fault Detection System Alerts and automatic error handling
- Modular Design Easy changeover for different gear types
- Low Maintenance Durable and efficient machine design
- 🔹 Specifications (Specs)
- Label Value
- Machine Type Gear Assembly Machine (Automatic)
- Gear Module 0.5 – 6 (Customizable)
- Gear Diameter 10 mm – 200 mm
- Max Assembly Length 300 mm
- Cycle Time 6 – 12 Sec
- Pressing Force Up to 20 Ton
- Accuracy ±0.02 mm
- Power Supply 415V AC, 3 Phase, 50Hz
- Control System Siemens PLC with HMI
- Drive System Servo Motor & Pneumatic
- Pneumatic Supply 6 – 8 Bar
- Air Consumption 100 – 200 LPM
- Machine Weight 1200 – 2000 kg
- Overall Dimension 2200 × 1500 × 1900 mm

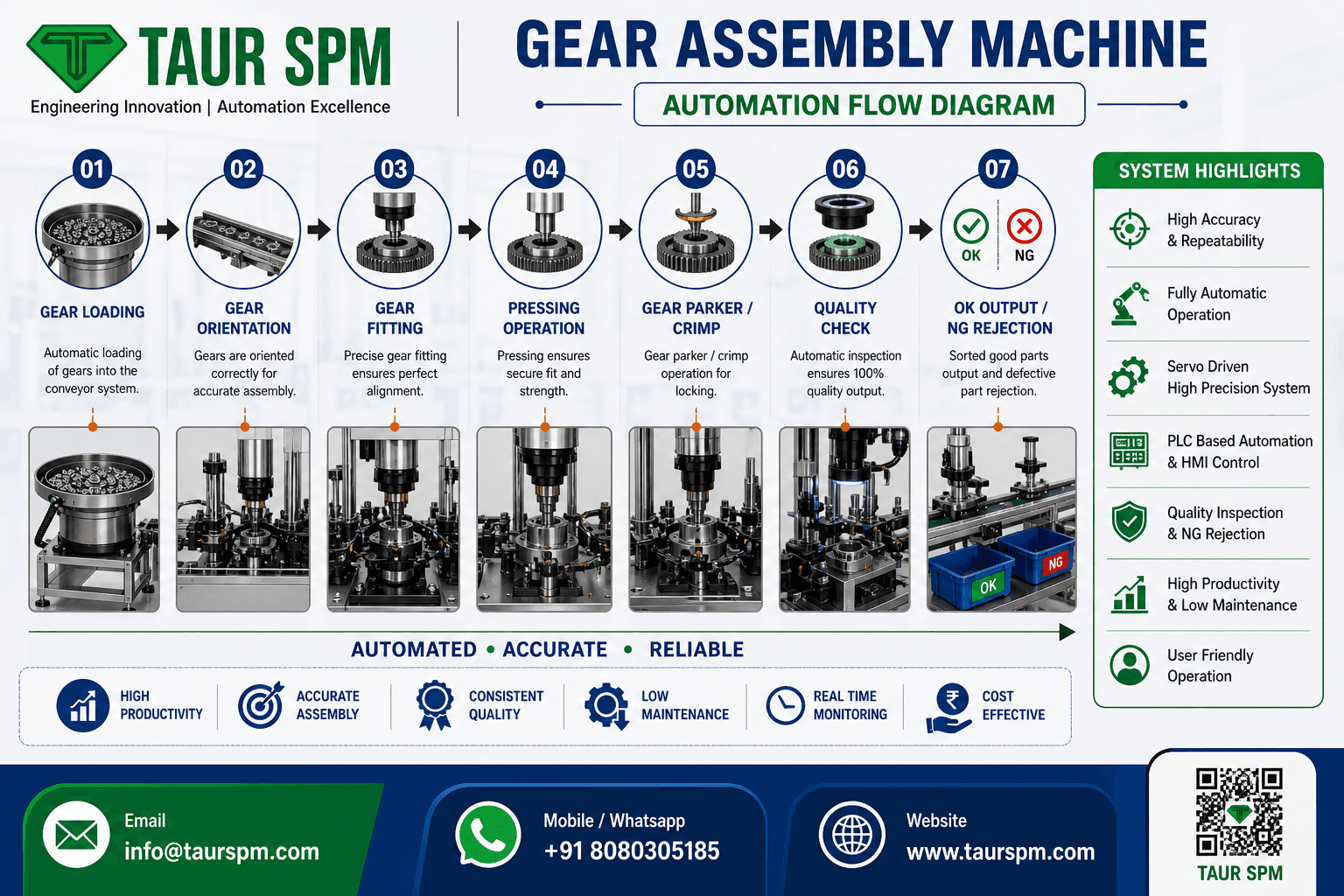

- 🔹 Product Functions
- Gear Loading
- Gear Orientation
- Gear Fitting
- Pressing Operation
- Gear Parker / Crimp
- Quality Inspection
- Defect Detection
- Part Sorting
- Unloading Conveyor
- Finished Product Output
