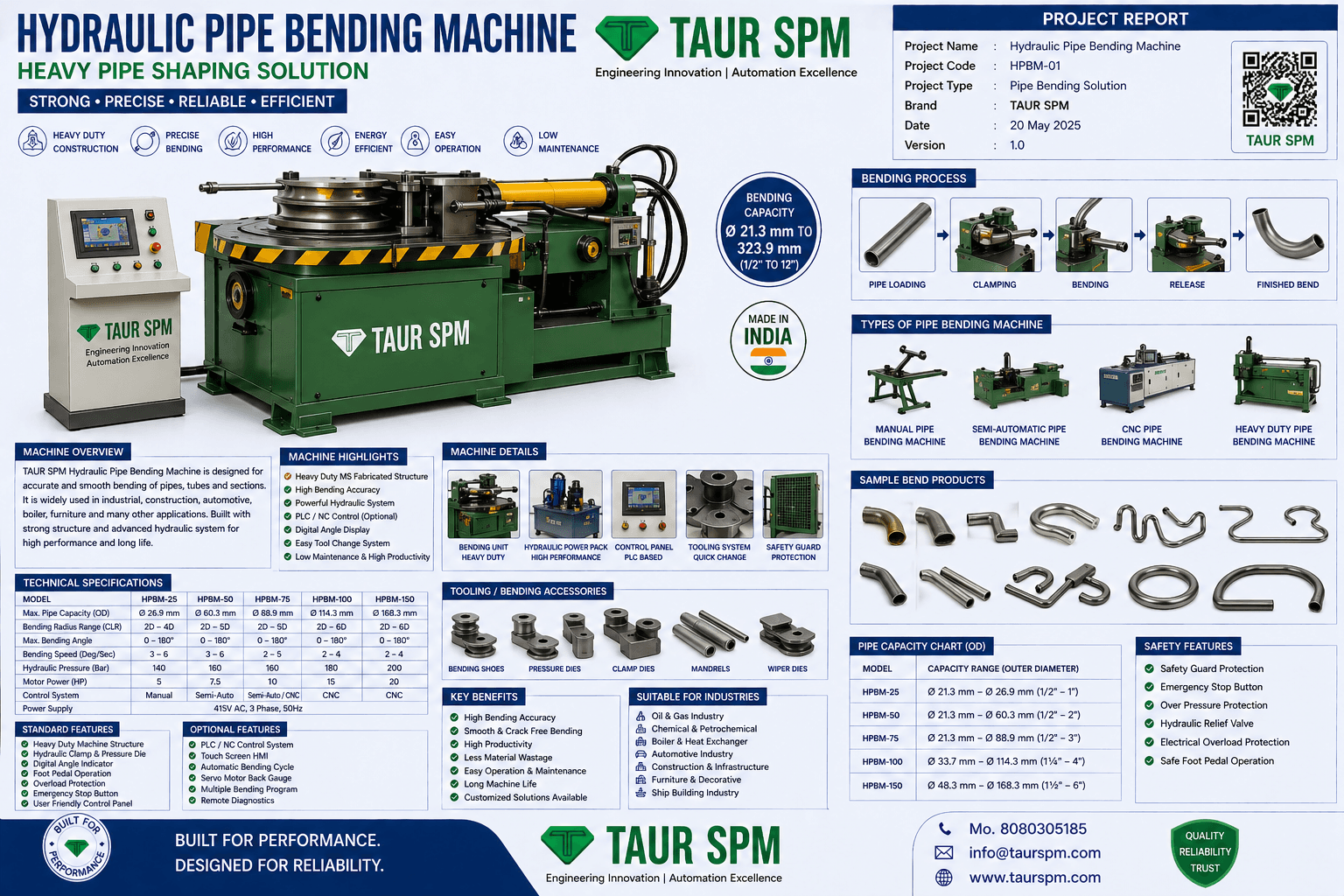

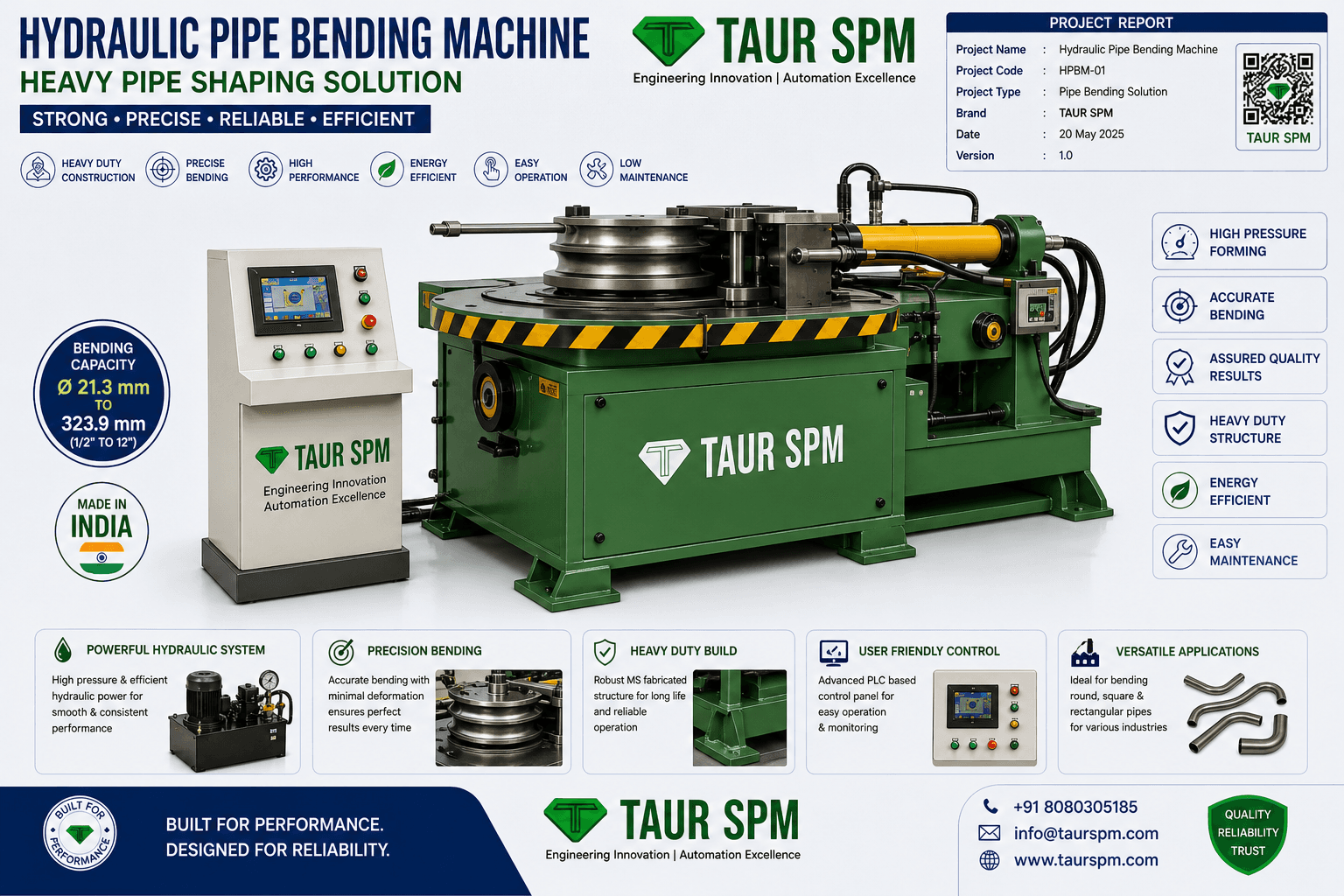

HPBM-25 / 50 / 75 / 100 / 150 Hydraulic Pipe Bending Machine
Heavy Pipe Shaping Solution – Strong, Precise, Reliable & EfficientParagraph 1: The TAUR SPM Hydraulic Pipe Bending Machine is designed for precise and efficient bending of pipes, tubes, and sections across multiple industries. It is widely used in construction, automotive, boiler manufacturing, furniture production, and infrastructure projects where high accuracy and repeatability are essential. Paragraph 2: Equipped with a powerful hydraulic system, this machine ensures smooth operation with high bending accuracy. It supports a wide bending capacity range from Ø21.3 mm to Ø323.9 mm and offers PLC/CNC control options for automation. Features like digital angle display, quick tooling change system, and high-performance hydraulic power pack enhance productivity. Paragraph 3: The machine delivers consistent results with minimal material wastage and reduced maintenance. Its robust MS fabricated structure ensures durability, while easy operation and safety features make it suitable for long-term industrial use. Custom configurations are also available as per application requirements.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Heavy Duty Structure MS fabricated rigid body for long life
- High Bending Accuracy Ensures precise angle bending

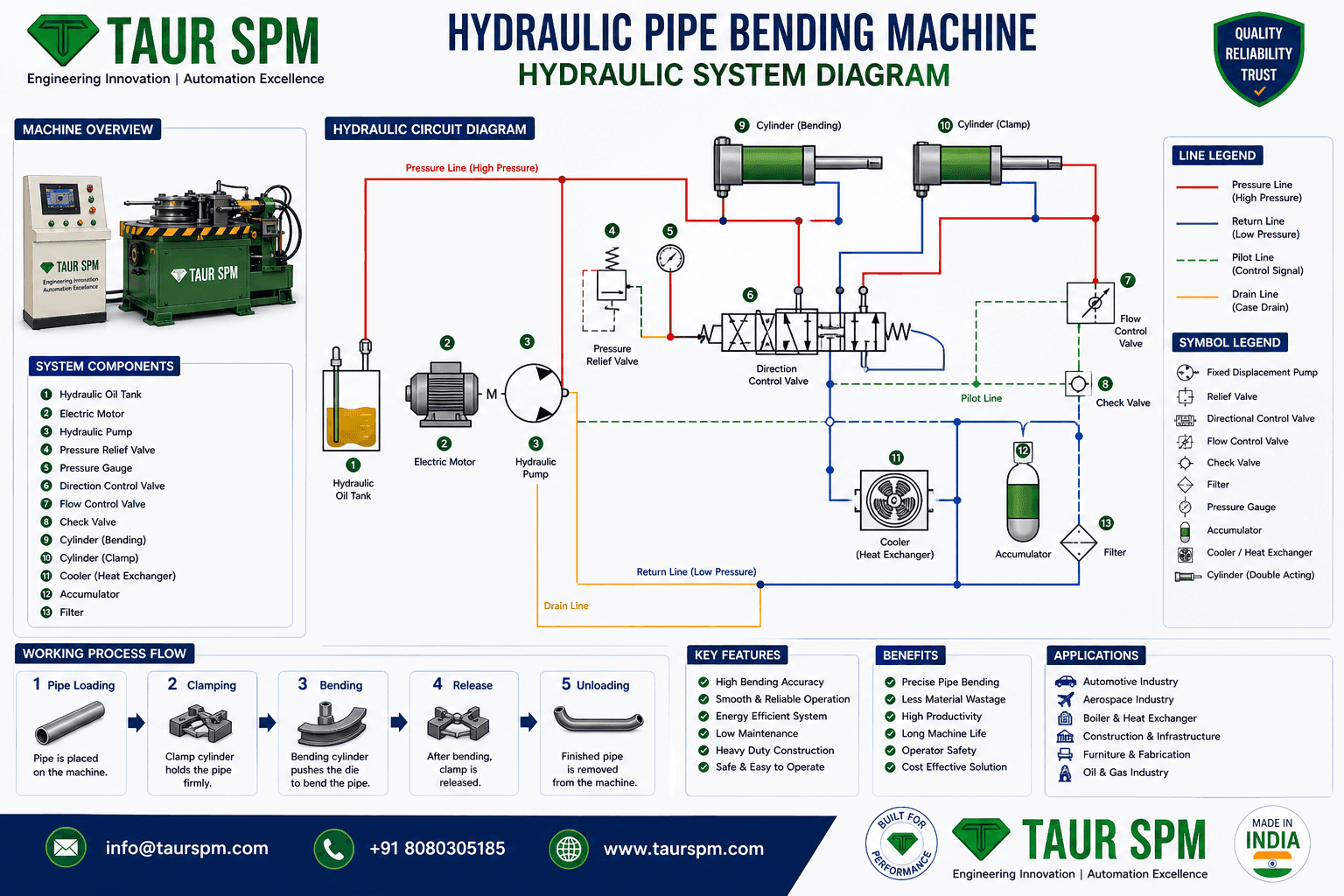

- Hydraulic Power System Smooth and powerful operation
- PLC/CNC Control Automation-ready operation
- Digital Angle Display Accurate angle monitoring
- Easy Tool Change Quick change tooling system
- Low Maintenance Designed for minimal upkeep
- Safety Guard Operator protection system
- 🔹 Specifications (Specs)
- Label Value
- Bending Capacity Ø21.3 mm to Ø323.9 mm
- Bending Radius Range 2D – 6D
- Max Bending Angle 0° – 180°
- Hydraulic Pressure 140 – 200 Bar
- Motor Power 5 HP – 20 HP
- Control System Manual / Semi-Auto / CNC
- Power Supply 415V AC, 3 Phase, 50Hz
- Bending Speed 2 – 6 sec (depending on model)
- 🔹 Product Functions (one per line)
- Pipe Loading
- Pipe Clamping
- Hydraulic Bending
- Angle Control
- Pipe Release
- Multi-angle Bending
- Repeat Operation
- Heavy Duty Pipe Forming
- Custom Shape Bending
- Industrial Production Support
