HPM-01 Hydraulic Press Machine (10–50 Ton Capacity)
High Precision Industrial Hydraulic Press for Metal Forming & FabricationParagraph 1 – Overview: The Hydraulic Press Machine (10–50 Ton) by TAUR SPM is a high-performance industrial solution designed for metal forming, punching, bending, blanking, and assembly applications. It is widely used across automotive, fabrication, electronics, and general engineering industries where precision and consistency are critical. Paragraph 2 – Performance & Features: This machine is built with a rigid welded frame and equipped with a high-efficiency hydraulic system. It offers adjustable stroke length, PLC-based control panel, digital pressure monitoring, and multiple operation modes (manual, semi-automatic, automatic). Available in capacities ranging from 10 Ton to 50 Ton, it ensures stable operation, accurate force control, and long service life. Paragraph 3 – Benefits: The machine provides excellent usability with low maintenance requirements and high durability. Its energy-efficient hydraulic system reduces operational cost, while safety features like interlocks and guards ensure operator protection. It enhances productivity, reduces downtime, and delivers consistent output quality.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Rigid Frame Construction Heavy-duty welded structure for vibration-free operation
- Precision Operation Accurate pressure control and repeatability
- PLC Control System Advanced Siemens/PLC-based control with HMI interface
- Adjustable Stroke Flexible stroke settings for different applications
- Multi-Mode Operation Manual, Semi-Automatic, and Automatic modes
- Safety System Dual-hand operation, interlock protection, safety guards
- Energy Efficient Optimized hydraulic system reduces power consumption
- Easy Maintenance Simple design for quick service and low downtime
- Overload Protection Prevents machine damage during excessive load
- Digital Monitoring Pressure and stroke display system

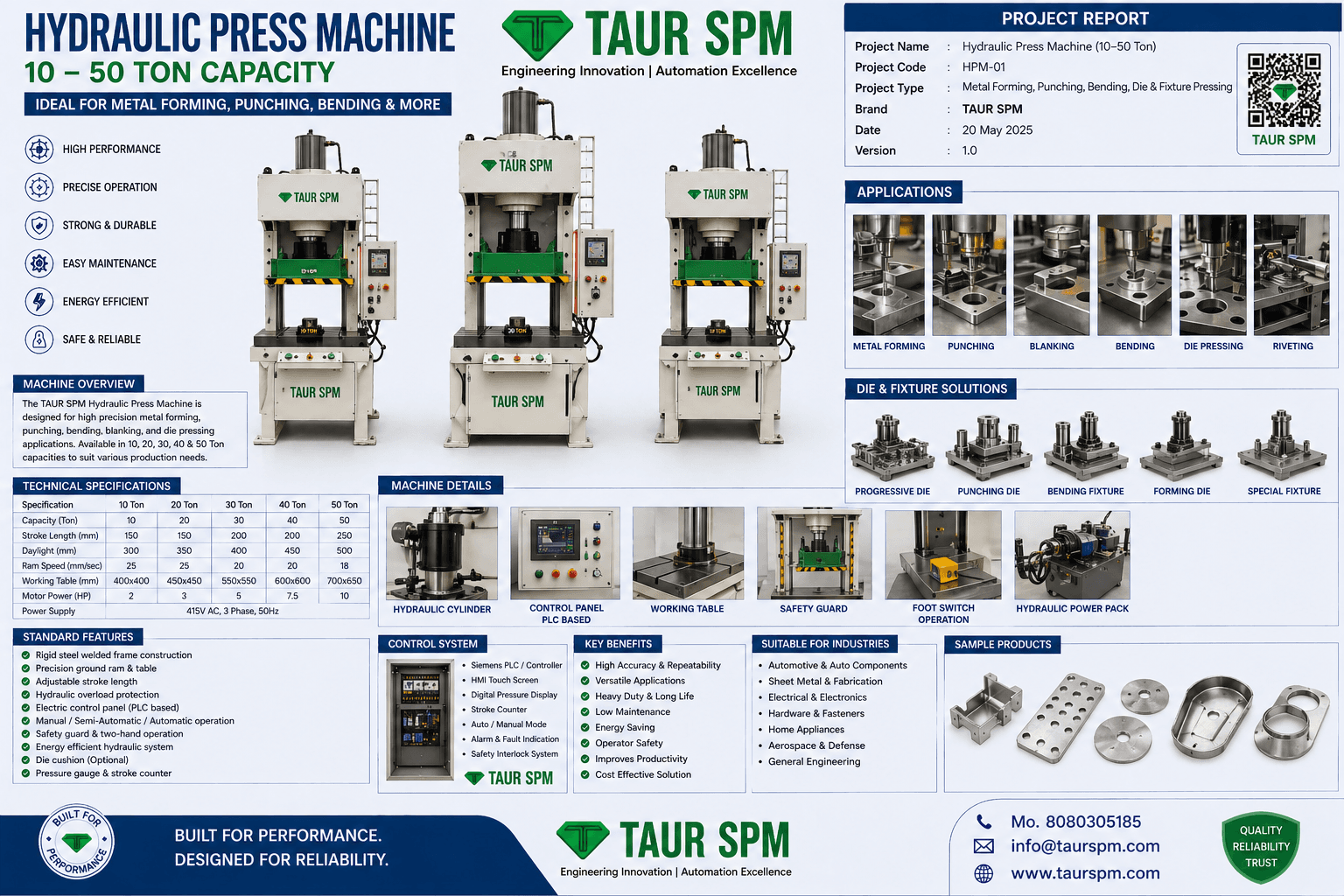

- 🔹 Specifications (Specs)
- Label Value
- Capacity 10 / 20 / 30 / 40 / 50 Ton
- Stroke Length 150 – 250 mm
- Daylight Gap 300 – 500 mm
- Ram Speed 18 – 25 mm/sec
- Working Table Size 400×400 to 700×650 mm
- Motor Power 2 HP – 10 HP
- Power Supply 415V AC, 3 Phase, 50Hz
- Control Type PLC / HMI Based
- Operation Type Manual / Semi-Automatic / Automatic

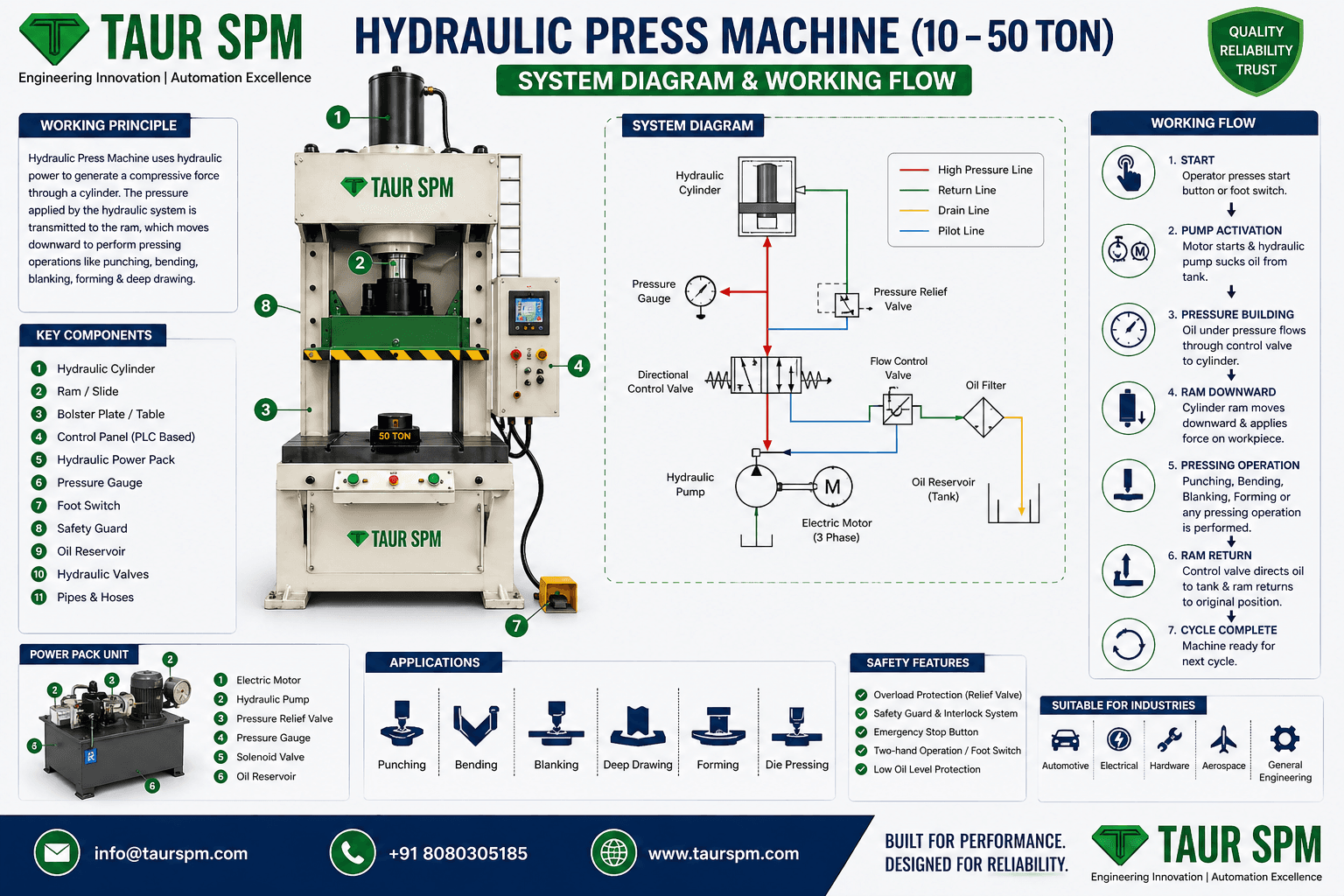

- Hydraulic System High Pressure Oil-Based System
- 🔹 Product Functions (one per line)
- Metal Forming
- Punching Operations
- Sheet Metal Bending
- Blanking Process
- Die Pressing
- Riveting Applications
- Component Assembly
- Deep Drawing Operations
- Hole Piercing
- Industrial Fabrication Tasks
