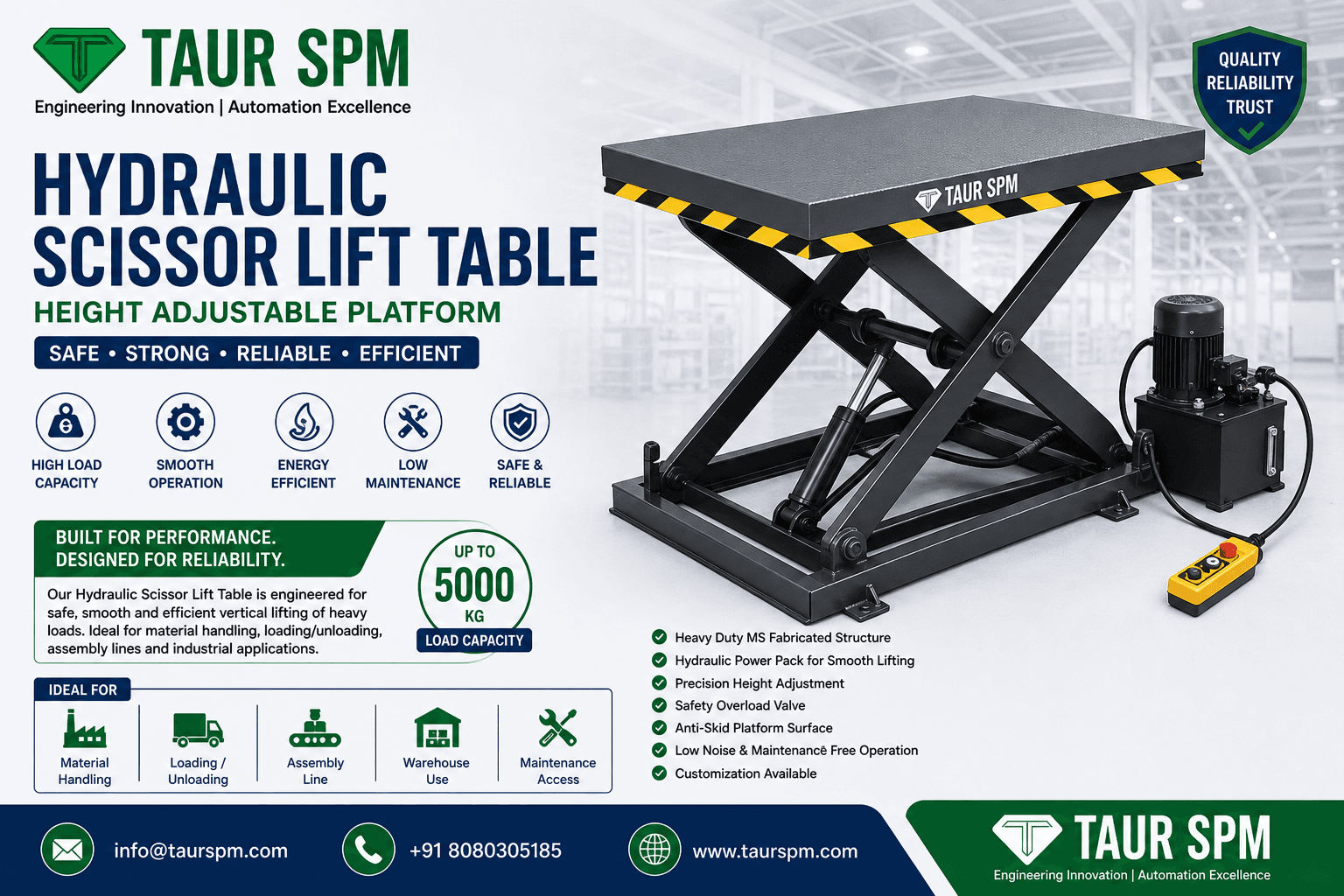

HSLT-01 Hydraulic Scissor Lift Table (Height Adjustable Platform)
Heavy Duty Material Handling Lift for Smooth & Safe Height AdjustmentParagraph 1 – Overview: The Hydraulic Scissor Lift Table by TAUR SPM is a robust and efficient material handling solution designed for lifting, positioning, and transporting heavy loads with ease. It is widely used in warehouses, assembly lines, logistics, manufacturing units, and maintenance operations where height adjustment and load handling are required. Paragraph 2 – Performance & Features: This lift table is powered by a high-performance hydraulic system and features a heavy-duty scissor mechanism for smooth vertical movement. It supports various configurations such as low profile, standard, heavy-duty, and U-shape models with load capacities ranging from 500 kg to 10,000 kg and lift heights up to 4000 mm. Equipped with safety overload valves, limit switches, and anti-slip platforms, it ensures reliable and safe operation. Paragraph 3 – Benefits: The scissor lift table enhances workplace productivity by reducing manual handling effort and improving ergonomic working conditions. Its durable construction ensures long service life with minimal maintenance. It saves time, reduces labor costs, and increases operational efficiency, making it an essential solution for industrial material handling.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Heavy Duty Structure Strong MS fabricated body for industrial use
- Hydraulic Lift System Smooth and stable lifting operation
- High Load Capacity Supports loads from 500 kg up to 10 Ton
- Safety Overload Valve Prevents overloading and system damage
- Emergency Stop Button Immediate stop for safety during operation
- Limit Switch System Controls upper and lower movement limits
- Anti-Skid Platform Ensures load stability during lifting
- Low Noise Operation Quiet and efficient hydraulic performance
- Customizable Design Available in multiple sizes and configurations
- Easy Maintenance Simple hydraulic system with easy service access
- 🔹 Specifications (Specs)
- Label Value
- Capacity 500 kg – 10,000 kg
- Lift Height 300 mm – 4000 mm
- Table Size 1200×800 mm to 2000×1500 mm
- Lift Time 15 – 30 seconds
- Motor Power 1 HP – 5 HP
- Power Supply 415V AC, 3 Phase, 50Hz
- Control Type Push Button / PLC Based
- Operation Type Hydraulic
- Structure Type Single / Double / Triple Scissor
- Surface Anti-Skid Platform
- 🔹 Product Functions (one per line)
- Material Lifting
- Height Adjustment
- Loading & Unloading
- Assembly Line Support
- Warehouse Operations
- Maintenance Access
- Ergonomic Work Positioning
- Heavy Load Handling
- Industrial Transportation Support
- Production Line Integration
