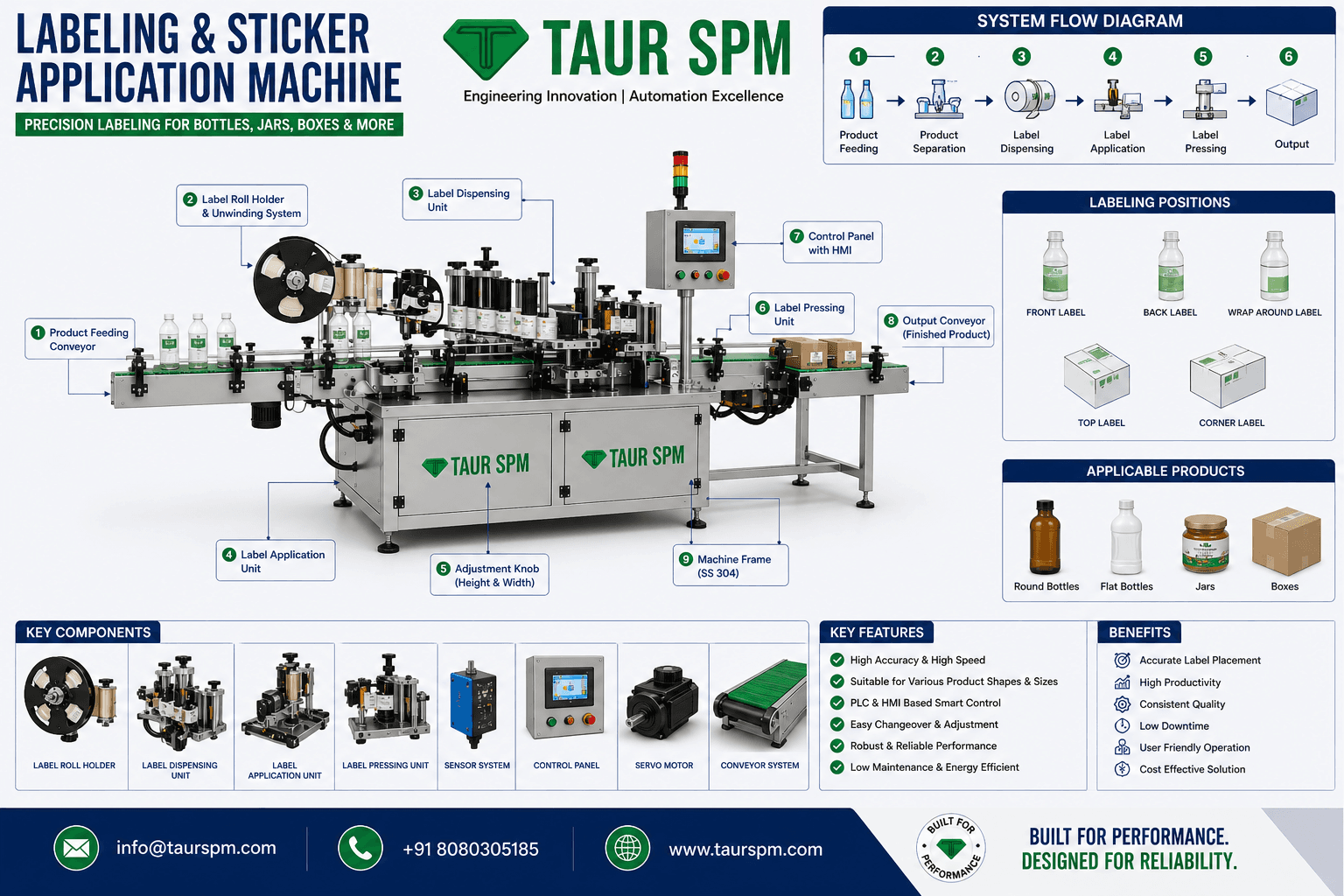

LSAM-01 Labeling & Sticker Application Machine
Precise Labeling for Bottles, Jars, Boxes & MoreParagraph 1: The Labeling & Sticker Application Machine is a fully automatic solution designed for precise and efficient labeling of bottles, jars, containers, and boxes. It is widely used in industries such as pharmaceuticals, food & beverage, cosmetics, FMCG, and e-commerce packaging where accurate labeling is essential for branding and compliance. Paragraph 2: This machine delivers high-speed and high-accuracy performance with labeling speeds of up to 200 products per minute (depending on product and label size). It supports various labeling types including front, back, wrap-around, top, and corner labeling. Equipped with a PLC-based control system, servo motor drive, and advanced sensor detection, it ensures consistent and reliable operation. Paragraph 3: Designed for flexibility and ease of use, the system allows quick changeovers between different products and label sizes. Its robust construction, low maintenance requirements, and user-friendly HMI interface make it a cost-effective and durable solution for modern packaging lines.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
â–¼ Function
- 🔹 Features
- Feature Title Description
- High Accuracy Labeling Ensures precise label placement with ±0.5 mm accuracy
- High Speed Operation Capable of labeling up to 200 products per minute
- Versatile Application Supports bottles, jars, containers, and boxes
- Multiple Label Positions Front, back, wrap-around, top, and corner labeling
- PLC & HMI Control Siemens PLC with touch screen interface
- Servo Driven System Provides smooth and accurate label dispensing
- Easy Changeover Quick adjustment for different product sizes
- Low Maintenance Durable design with minimal servicing requirements
- 🔹 Specifications (Specs)
- Label Value
- Machine Type Automatic Labeling Machine
- Label Type Sticker Label / Self-Adhesive Label
- Applicable Products Bottles, Flat Bottles, Jars, Boxes
- Labeling Speed Up to 200 products/min (depending on product & label size)
- Label Accuracy ±0.5 mm
- Label Size (L) 15 – 300 mm, (H) 15 – 150 mm (Customizable)
- Product Size Dia: 20 – 120 mm (Round Bottles)
- (L) 20 – 250 mm, (W) 20 – 150 mm, (H) 20 – 200 mm (Boxes)
- Roll Size Inner Dia 76 mm, Outer Dia 300 mm
- Power Supply 415V AC, 3 Phase, 50Hz
- Power Consumption 1.5 – 3.0 kW
- Air Supply 6 – 8 Bar (Clean & Dry Air)
- Control System Siemens PLC with HMI Touch Screen
- Machine Weight 300 – 800 kg (Approx.)
- 🔹 Product Functions (one per line)
- Product Feeding
- Product Separation
- Label Dispensing
- Label Detection
- Label Application
- Label Pressing
- Position Adjustment
- Multi-Side Labeling
- Output Conveyor Movement
- Automated Labeling Process
