MD-01 Multi-Spindle Drilling Machine (SPM)
High Productivity Multi-Hole Drilling in Single CycleParagraph 1 (Overview): The Multi-Spindle Drilling Machine by TAUR SPM is a high-performance special purpose machine designed for drilling multiple holes simultaneously in a single setup. It is widely used in automotive, electrical, fabrication, and general engineering industries where precision, repeatability, and high production output are essential. Paragraph 2 (Performance): This machine is equipped with multiple spindle heads (2 to 12 spindles or more as required), enabling simultaneous drilling operations with high accuracy. Servo motor-driven spindle feed, PLC & HMI-based automation, and rigid structure ensure vibration-free operation, consistent drilling quality, and reduced cycle time. It supports drilling diameters from Ø2 mm to Ø16 mm with variable spindle speeds up to 4000 RPM. Paragraph 3 (Benefits): The system significantly improves productivity by reducing machining time and ensuring uniform hole quality across components. Its quick-change fixture system, efficient coolant setup, and user-friendly interface enhance usability and reduce downtime. Built with a robust design, it offers long-term durability, low maintenance, and reliable performance in demanding industrial environments.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- 🔹 Features
- Feature Title Description
- Multi-Spindle Drilling Drill multiple holes in one cycle
- High Accuracy Precision drilling with repeatability
- Servo Feed System Smooth and accurate spindle movement
- PLC & HMI Control Automated and user-friendly control
- Quick Fixture Change Reduces setup time
- Rigid Machine Structure Vibration-free performance
- Coolant System Improves tool life and performance
- Variable Spindle Speed Adjustable up to 4000 RPM
- Low Maintenance Durable and reliable design
- Customizable Setup Configurable spindle quantity & layout

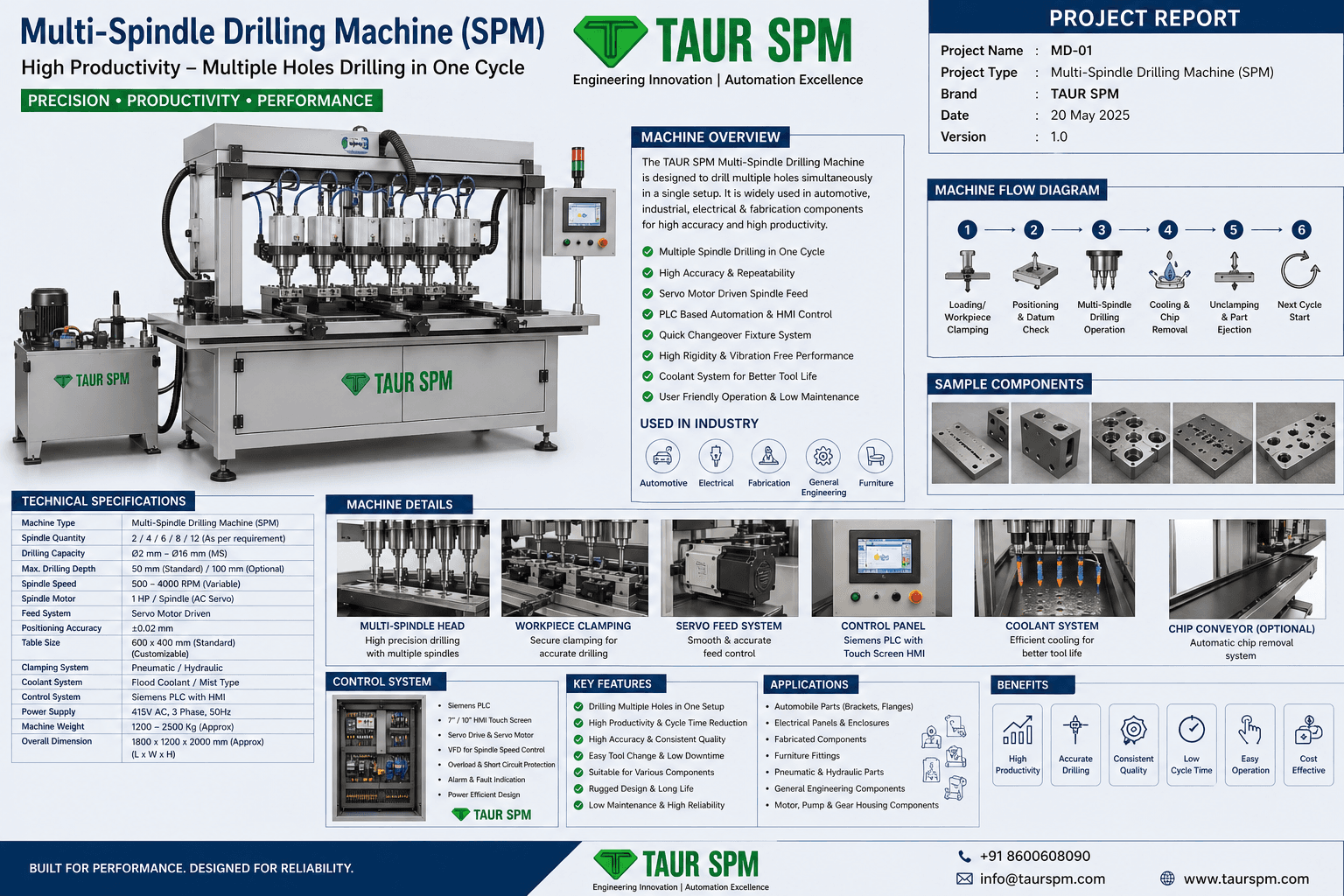

- 🔹 Specifications (Specs)
- Label Value
- Machine Type Multi-Spindle Drilling Machine (SPM)
- Spindle Quantity 2 / 4 / 6 / 8 / 12 (Customizable)
- Drilling Capacity Ø2 mm – Ø16 mm (MS)
- Max Drilling Depth 50 mm (Standard) / 100 mm (Optional)
- Spindle Speed 500 – 4000 RPM (Variable)
- Spindle Motor 1 HP per spindle (AC Servo Optional)
- Feed System Servo Motor Driven
- Positioning Accuracy ±0.02 mm
- Table Size 600 × 400 mm (Customizable)
- Clamping System Pneumatic / Hydraulic
- Coolant System Flood Coolant / Mist Type
- Control System Siemens PLC with HMI
- Power Supply 415V AC, 3 Phase, 50Hz
- Machine Weight 1200 – 2500 kg
- Overall Dimension 1800 × 1200 × 2000 mm

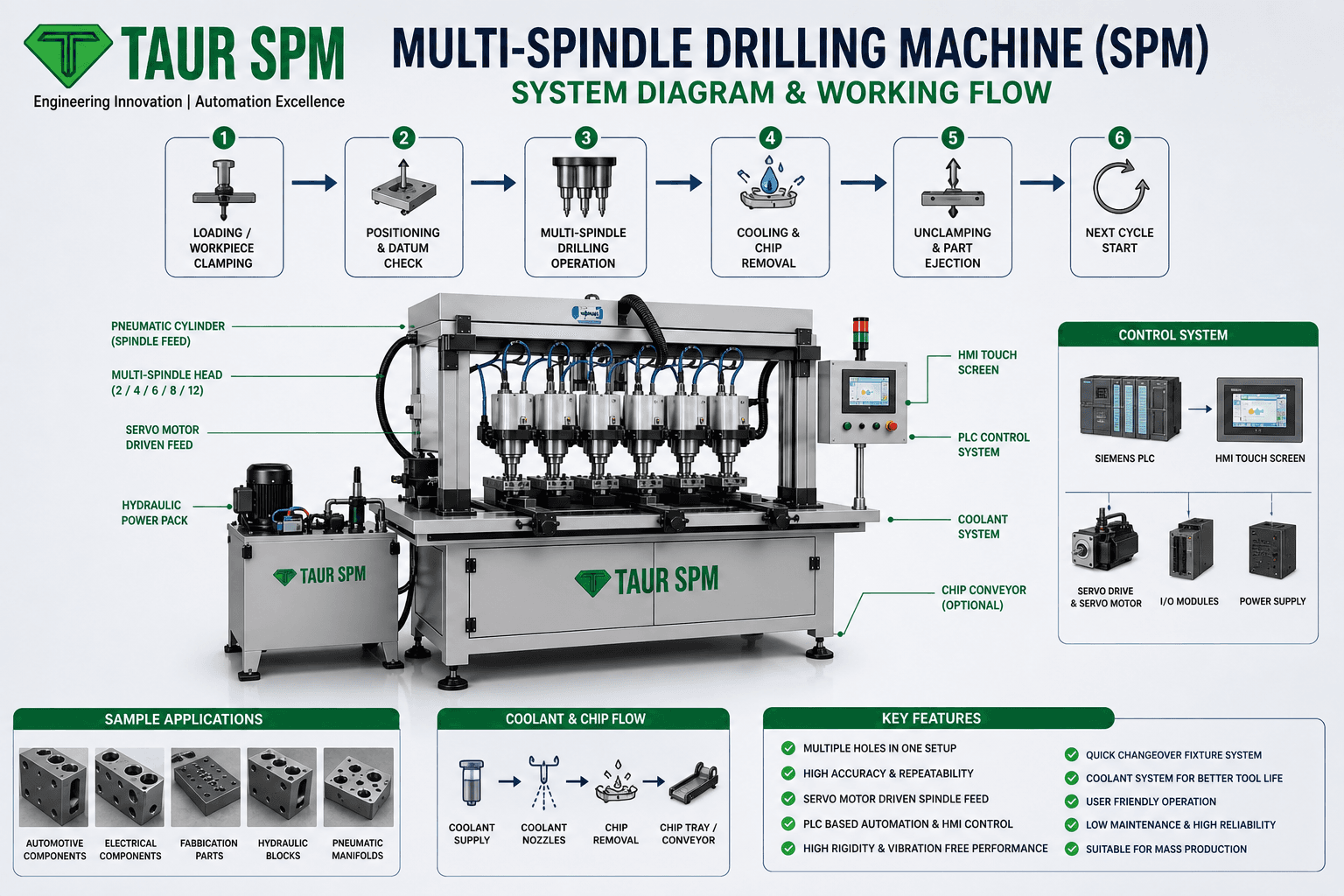

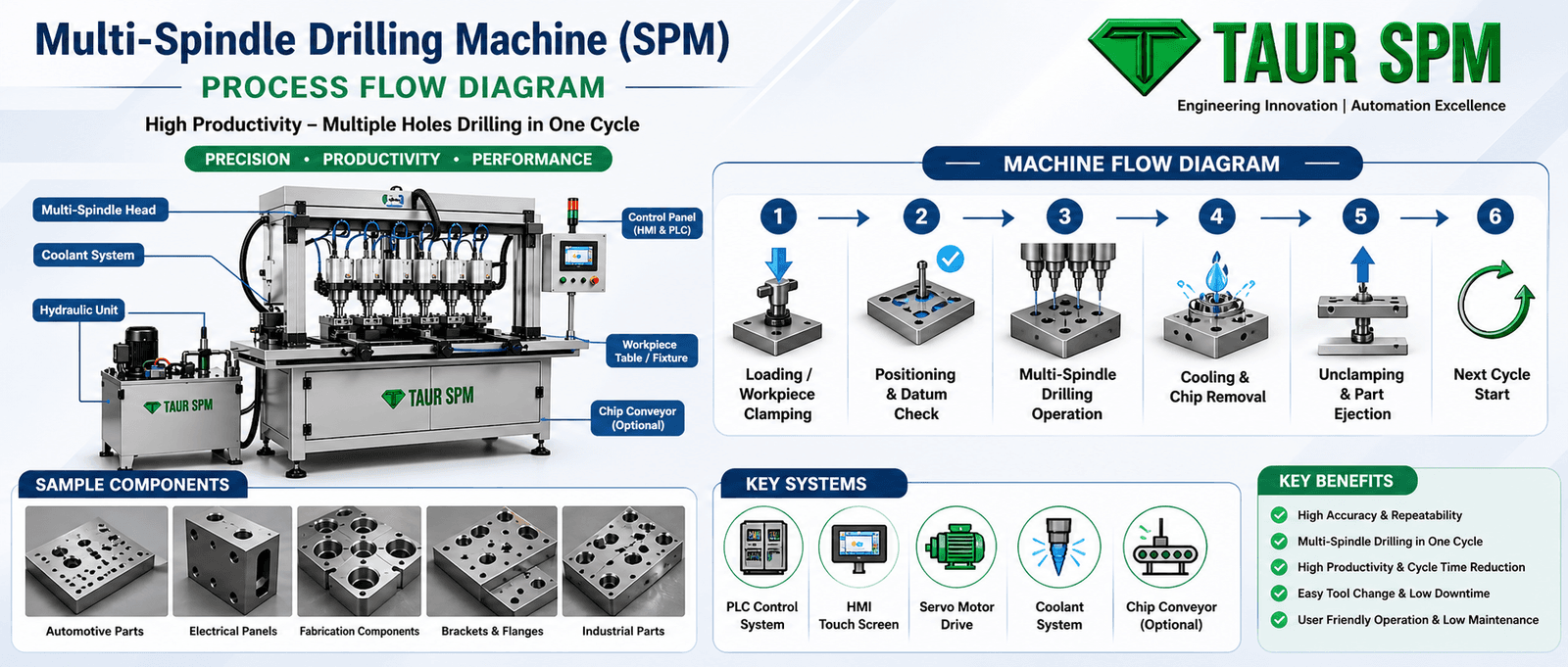

- 🔹 Product Functions
- Workpiece Loading
- Workpiece Clamping
- Positioning & Alignment
- Multi-Spindle Drilling
- Chip Removal
- Coolant Circulation
- Quality Checking
- Workpiece Unclamping
- Part Ejection
- Cycle Repeat Operation
