MH-RA-01 Material Handling Robotic Arm Base System
Heavy Parts Pick & Place Automation SolutionParagraph 1: The Material Handling Robotic Arm Base System is a high-performance automation solution designed for heavy parts pick-and-place applications. It is widely used in industries such as automotive, CNC machining, foundry, warehousing, and packaging to automate material transfer, loading, and unloading processes with precision and safety. Paragraph 2: This system offers exceptional performance with payload capacity ranging from 10 kg to 200 kg and above. It features a 4-axis or 6-axis robotic arm, high-precision servo control, PLC-based automation with HMI interface, and customizable grippers such as magnetic or pneumatic. The system ensures continuous 24/7 operation with high accuracy (±0.02 mm) and efficient cycle times. Paragraph 3: Built for reliability and durability, the system enhances productivity while reducing manual labor and operational risks. With integrated safety sensors, interlocks, and a robust structure, it ensures safe operation in industrial environments. Its flexible design allows easy integration into existing production lines, making it a cost-effective and scalable automation solution.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
â–¼ Function
- 🔹 Features
- Feature Title Description
- Heavy Load Handling Supports payload from 10 kg up to 200 kg+
- Robotic Arm Flexibility Available in 4-axis and 6-axis configurations
- High Precision Control Achieves accuracy up to ±0.02 mm
- PLC & HMI Automation Siemens PLC with user-friendly interface
- Custom Gripper Options Magnetic, pneumatic, or vacuum grippers
- Continuous Operation Designed for 24x7 industrial use
- Safety System Equipped with sensors, interlocks, and light curtains
- Fast Cycle Time Optimized for quick and efficient operations
- 🔹 Specifications (Specs)
- Label Value
- Payload Capacity 10 kg – 200 kg+ (Customizable)
- Reach 1000 mm – 3000 mm (Customizable)
- Axes 4 Axis / 6 Axis
- Repeatability ±0.02 mm
- Cycle Time 5 – 15 sec (depending on application)
- Power Supply 415V AC, 3 Phase, 50Hz
- Control System Siemens PLC with HMI
- Drive System Servo Motor & Servo Drive
- End Effector Magnetic / Pneumatic / Vacuum Gripper
- Safety System Light Curtains, Sensors, Emergency Stop
- Mounting Floor Base / Linear Track (Optional)
- Environment 0 – 45°C, 20 – 80% RH
- Communication Ethernet / Profinet / IO Link

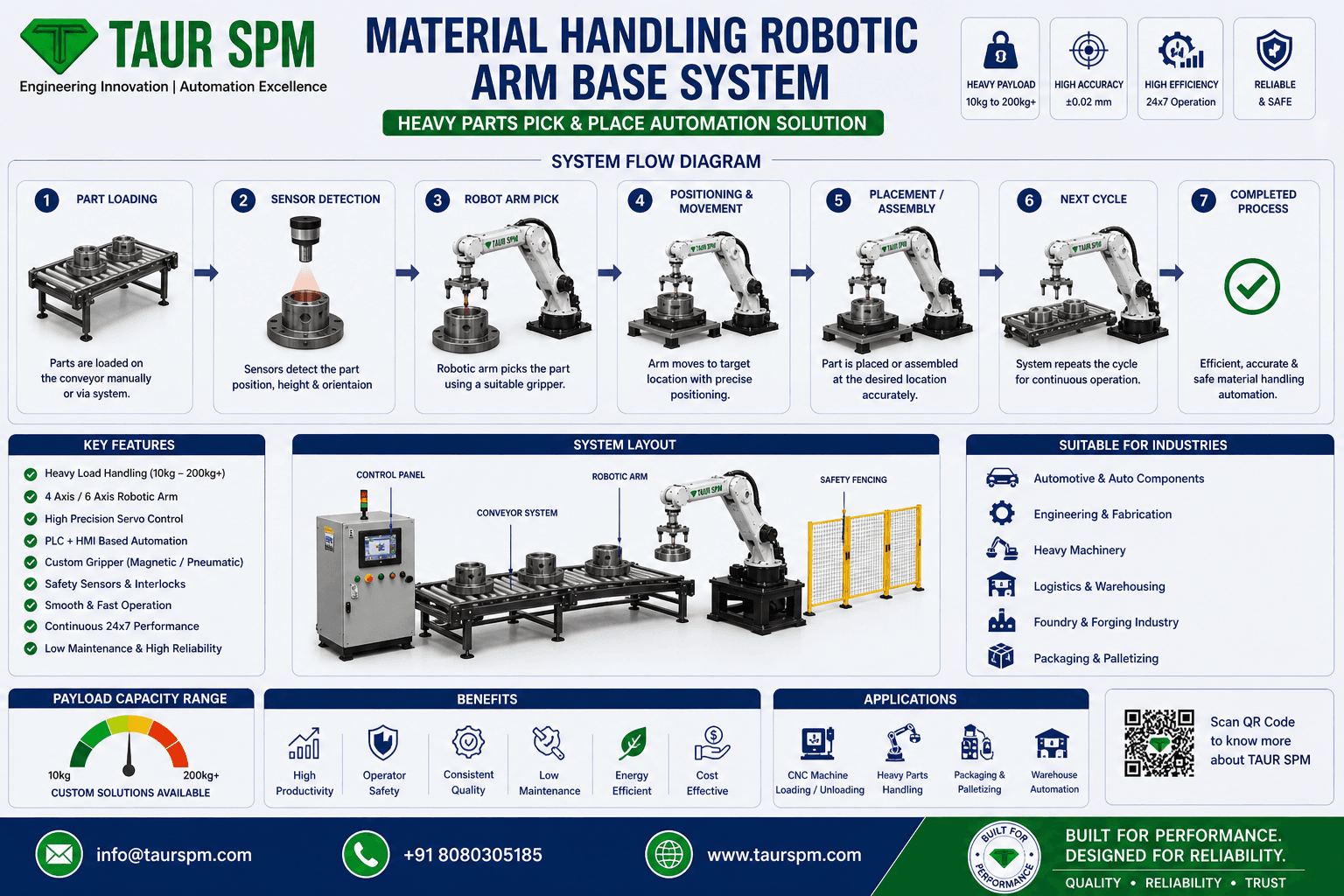

- 🔹 Product Functions (one per line)
- Part Loading
- Sensor Detection
- Robotic Pick Operation
- Positioning & Movement
- Material Transfer
- Placement / Assembly
- Repeat Cycle Automation
- Conveyor Integration
- Safety Monitoring
- Automated Production Handling
