Mobile Robot Pallet Wrapping Machine
Automatic Battery Operated Pallet Wrapper🔹 Description Product Overview The T-WR/S50M Mobile Robot Pallet Wrapper is an advanced automatic wrapping solution designed for securing palletized goods across industries such as food, beverage, chemicals, textiles, and machinery. Its mobile robotic design allows flexible operation without the need for a fixed installation, making it ideal for warehouses and logistics environments. Key Performance This machine operates on a PLC control system with a user-friendly touch screen panel. It supports a maximum wrapping height of 2.4 meters (expandable up to 3 meters) and delivers a high moving speed of 90 meters per minute. Powered by dual 24V batteries, it can wrap 200–300 pallets per charge, ensuring efficient and continuous operation. Benefits The machine offers excellent portability, reduced labor effort, and consistent wrapping quality. Its battery-driven system eliminates dependency on direct power supply, while its compatibility with LLDPE film ensures strong and secure packaging. It enhances productivity and reduces operational downtime.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!



â–¼ Function
- Automatic pallet wrapping
- Mobile wrapping operation
- Battery-powered movement
- Film tension control
- Height adjustment
- Speed control
- Touchscreen operation
- Consistent load stabilization
- Energy-efficient wrapping
- Multi-industry application
â–¼ Product Parameters
| Parameter | Value | Available customisation |
|---|---|---|
| Automatic Grade | Automatic | |
| Driven Type | Battery | |
| Voltage | AC100–240V, 1 Phase, 50/60Hz | |
| Battery & Power | DC 24V, 120Ah (2 batteries, each 12V) | |
| Control Panel | Touch Screen | |

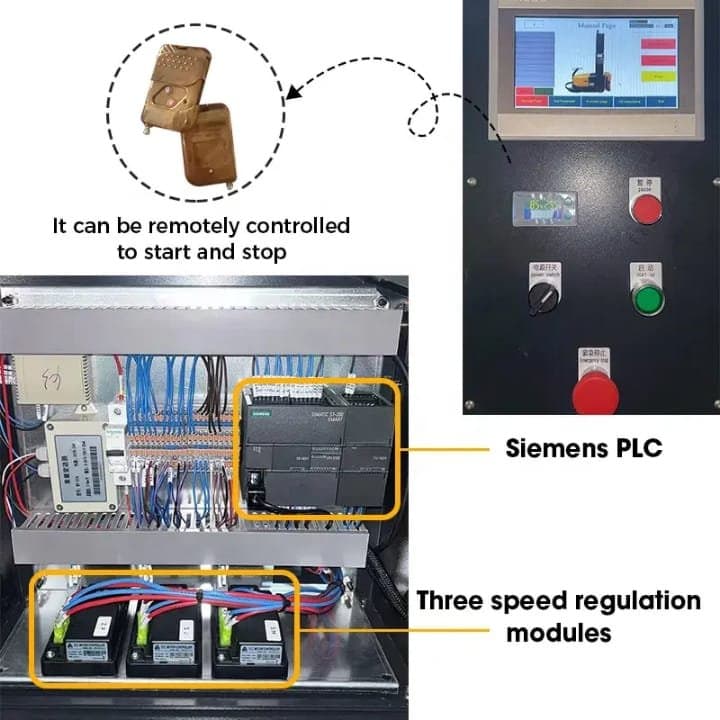

| Control System | PLC | |
| Max Wrapping Height | 2.4m (Optional: 2.8m / 3m) | |
| Moving Speed | 90 m/min | |
| Continuous Working Time | 200–300 pallets per charge | |
| Suitable Film | LLDPE Film ≤500mm width | |
| Film Core Diameter | 76mm | |
| Film Outer Diameter | ≤250mm | |
| Pallet Size | Min 600×600mm, Max unlimited |
â–¼ Features
Automatic Operation
Fully automatic wrapping with minimal manual intervention
Mobile Robot Design
Easily movable machine, no fixed installation required
Battery Powered
Dual battery system for cordless operation
PLC Control System
Advanced control for precision and reliability

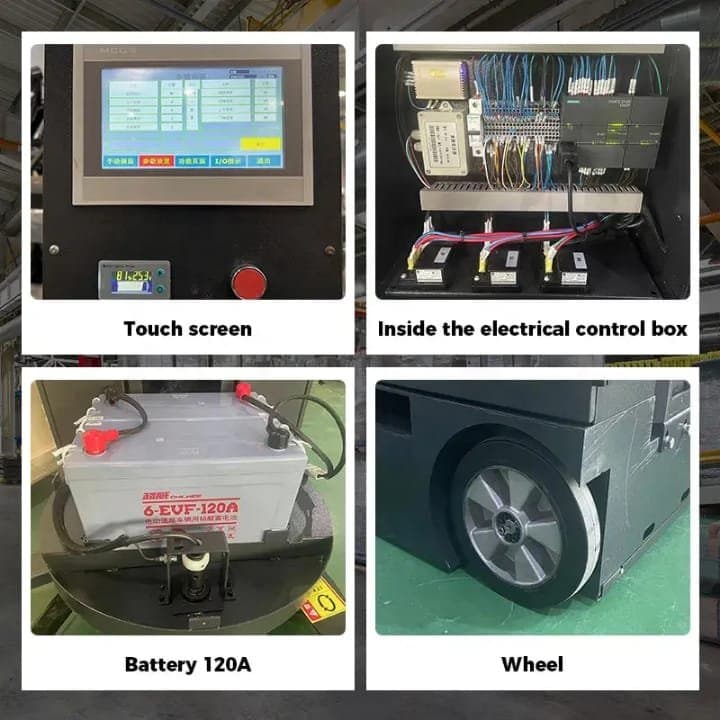

Touch Screen Panel
Simple and user-friendly interface
High Wrapping Speed
Up to 90 meters per minute
Adjustable Height
Standard 2.4m, optional up to 3m
Wide Application
Suitable for multiple industries
Film Compatibility
Supports LLDPE wrapping film
Long Working Time
200–300 pallets per charge
