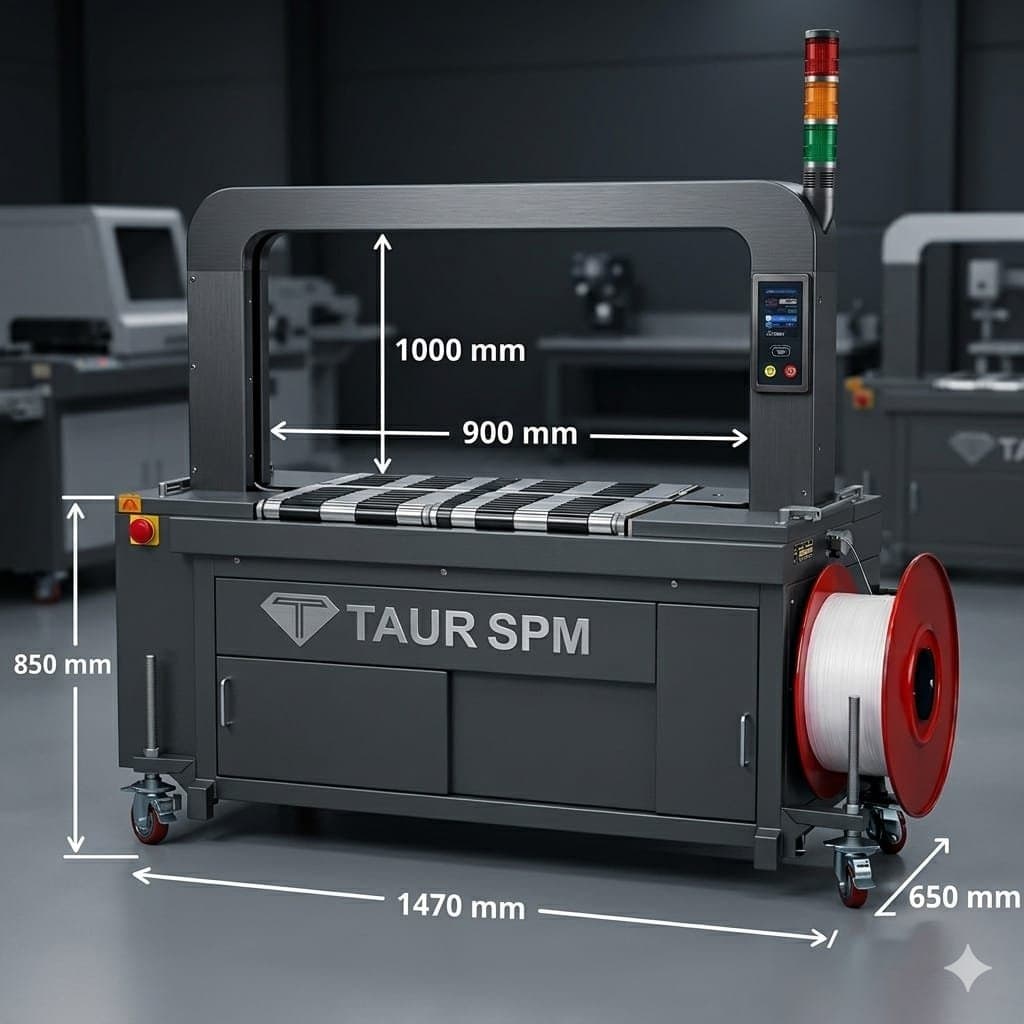

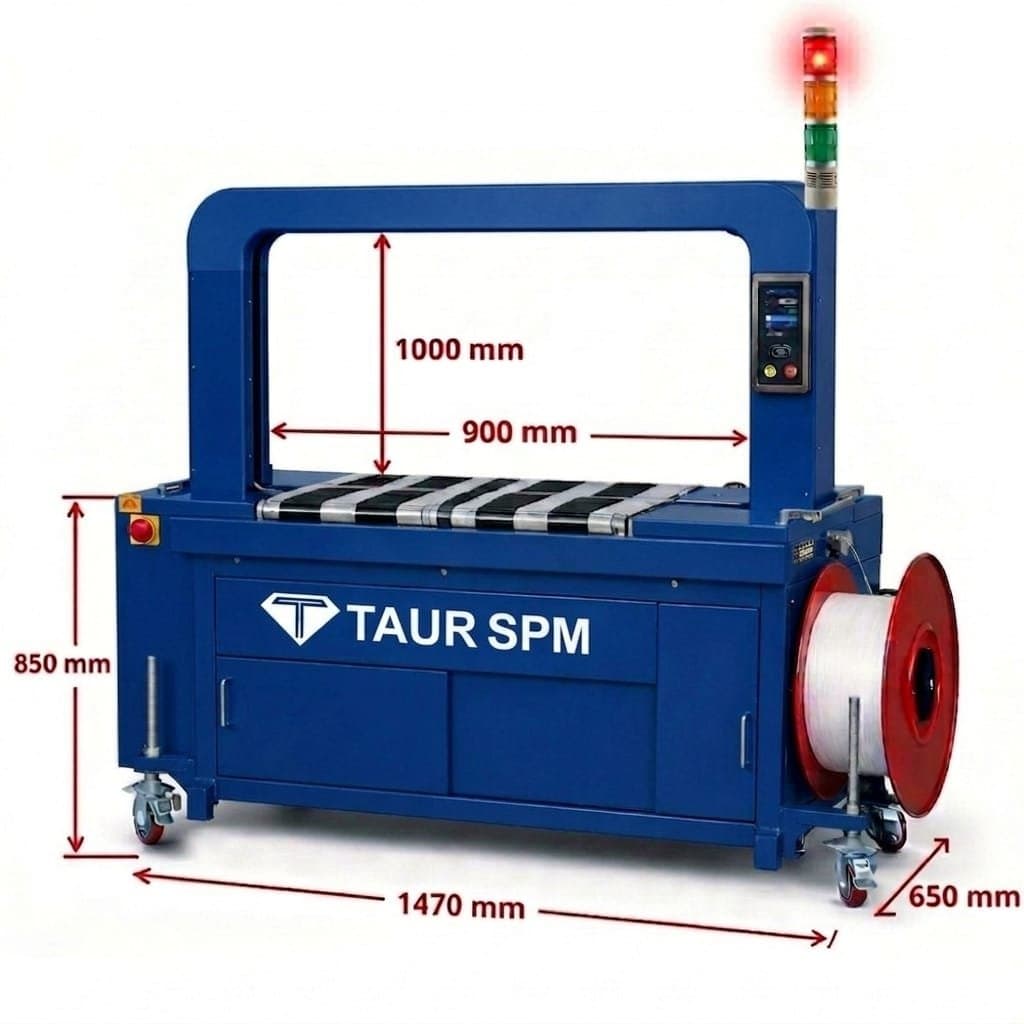

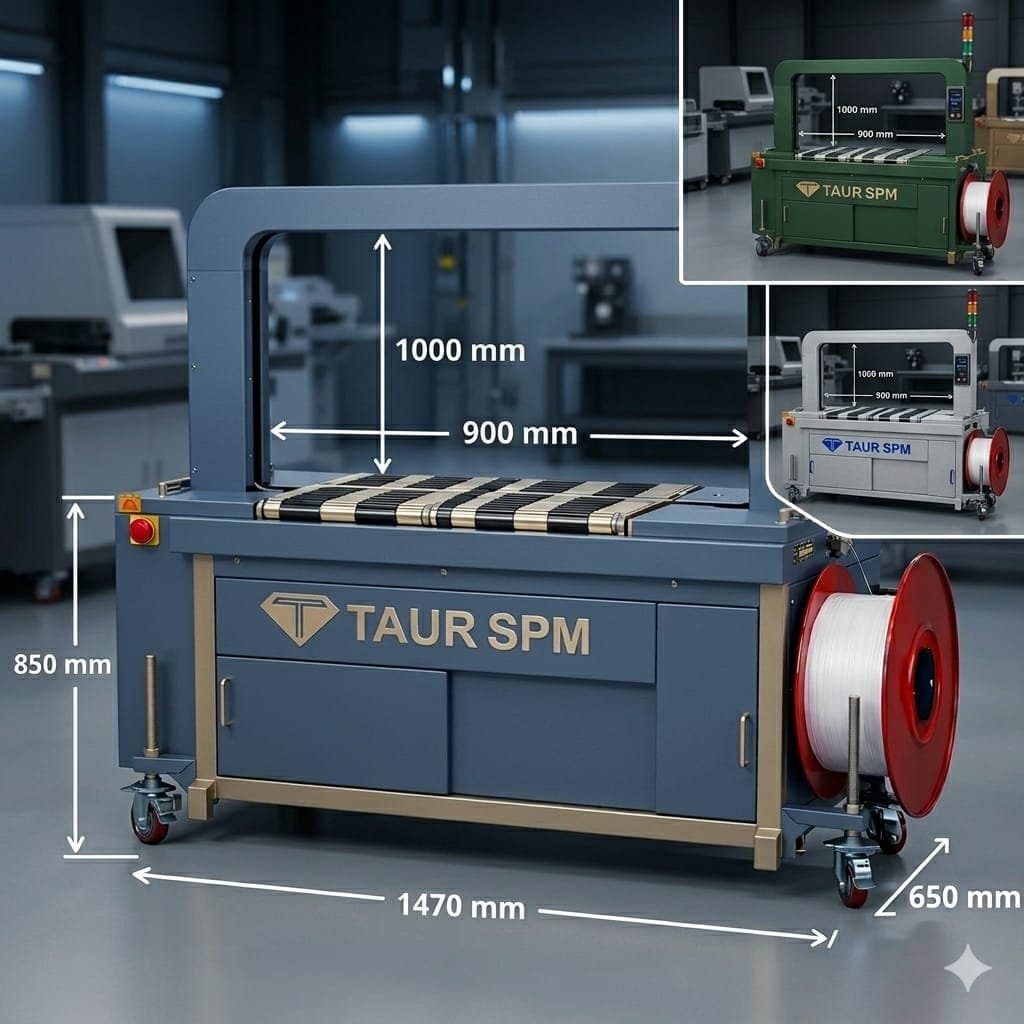

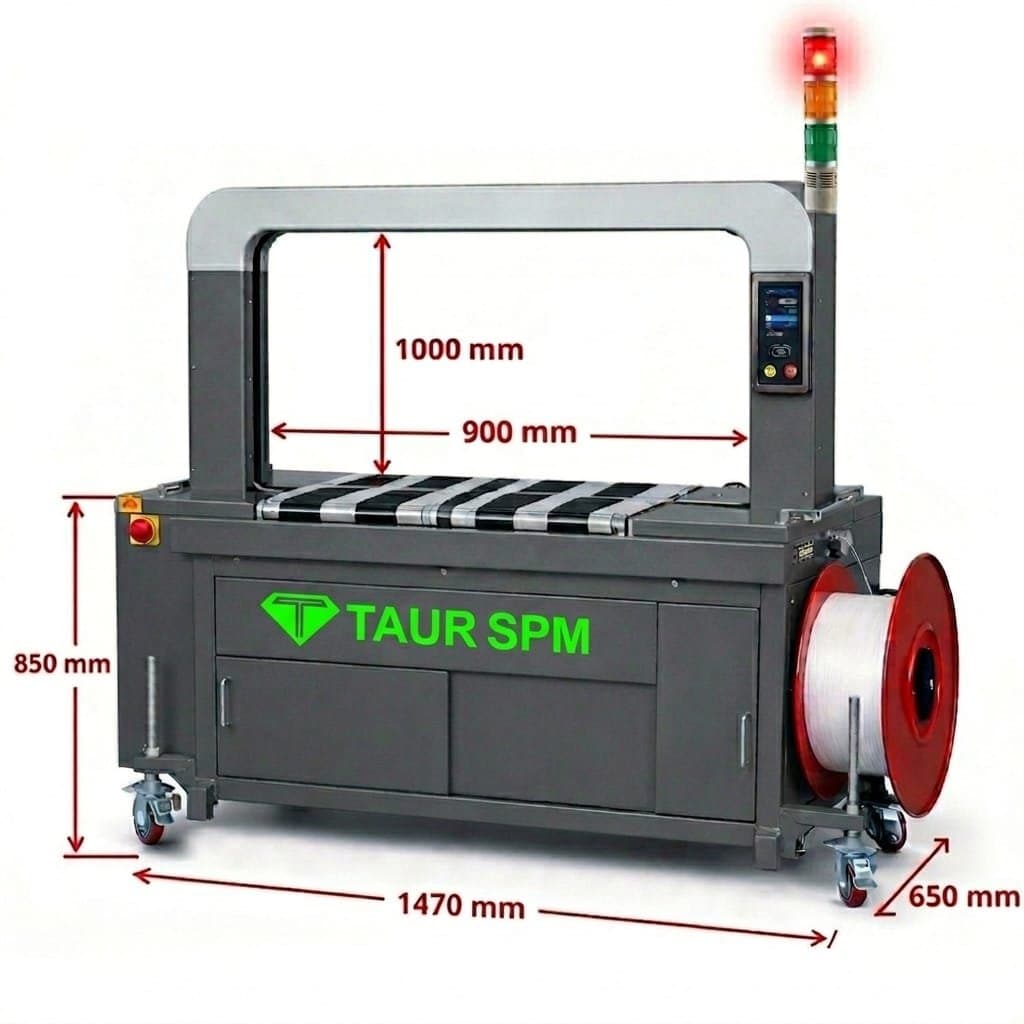

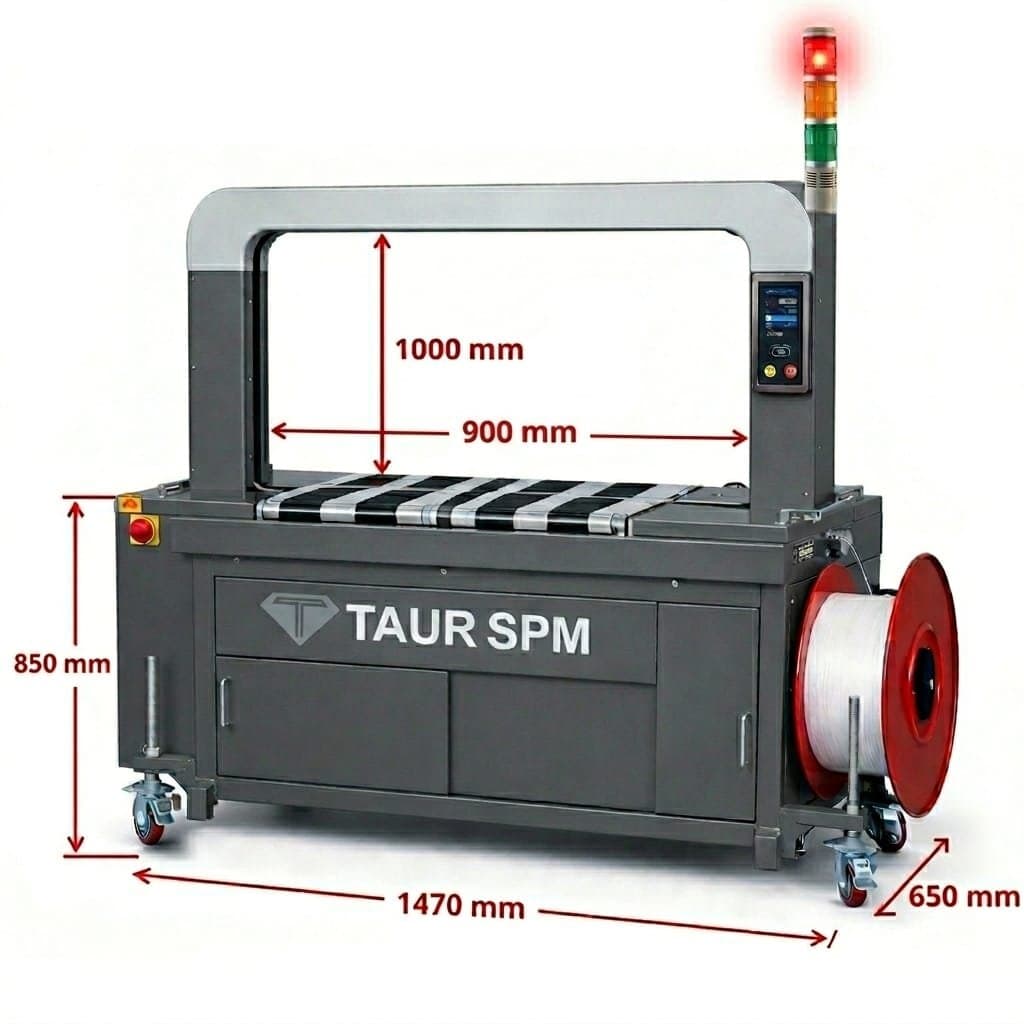

Online High Speed Fully Automatic Strapping Machine
online High Speed Fully Automatic Strapping MachinePRODUCT SERIES:Automatic Strapping Machine
Product ModelT-F.A.R-S16
Product Size(mm)1470 × 650 × 850 mm
Product Weight(kg)400kg
EfficiencyA+1
TAUR SPM Online High Speed Modular Long Arch Fully Automatic Strapping Machine is designed for high-speed and reliable industrial packaging applications. The machine ensures consistent strap tension, fast operation, and user-friendly controls. It is ideal for continuous production lines and heavy-duty applications.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!



▼ Function
- Automatic strap feeding
- Automatic strap tensioning
- Heat sealing operation
- Incomplete strap auto-correction
- Strap cycle counting
- Automatic home position
- Machine start indication
- Full system signal monitoring
- Error alert on HMI
- Remote diagnostic support
- Strap storage full indication
▼ Product Parameters
| Parameter | Value | Available customisation |
|---|---|---|
| Strap Width | 12–15 mm | (Optional up to 5mm/9mm/19 mm) |
| Strap Tension | 10–60 kg | 70kg and 80kg |
| Sealing Method | Heat Weld | |
| Strap Feeding Time | 1–1.5 sec | .8-1sec |
| Power Supply | AC 220V / 380V, 50/60 Hz | |
| Phase | Single/Three Phase | |
| Power Consumption | 750 W – 1.2 kW | |
| Machine Structure | Mild Steel, Powder Coated | SS304/SS316/SS202 |
▼ Features
High-Speed Operation
Ensures fast strapping with 1–1.5 sec strap feeding time.
Fully Automatic System
Performs complete strapping cycle without manual intervention.
Smart HMI Interface
Displays real-time errors and machine status for easy operation.
Zero Strap Wastage
Optimized system minimizes material loss.
Remote Support Option
Allows troubleshooting via remote screen access.
Low Maintenance Design
Engineered for long-term use with minimal servicing.
