SAD-01 FRL Controlled Smart Air Distribution System
Intelligent Air Management for Smart FactoriesParagraph 1: The TAUR SPM FRL Controlled Smart Air Distribution System is designed to deliver clean, regulated, and efficient compressed air to pneumatic devices across industrial setups. It is ideal for smart factories requiring reliable air management, monitoring, and automation. Paragraph 2: This system features an integrated FRL unit (Filter-Regulator-Lubricator) with input pressure range of 2–16 bar and adjustable output pressure from 0.5–10 bar. It supports airflow up to 5000 LPM and provides filtration up to 5 micron / 40 micron. Equipped with PLC/HMI or IIoT-enabled smart controller, it allows real-time monitoring, data logging, and remote access via Ethernet/Wi-Fi. Paragraph 3: The system improves energy efficiency, reduces air leakage, and enhances equipment life through optimized air quality and pressure control. Its modular and scalable design ensures easy installation, low maintenance, and seamless integration into Industry 4.0 environments.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
â–¼ Function
- 🔹 Features
- Feature Title Description
- Smart Pressure Regulation Maintains stable and accurate air pressure
- Real-Time Monitoring Live data tracking via HMI/IIoT system
- Energy Saving System Reduces air consumption and power usage
- Leak Detection & Alerts Identifies air leaks and sends notifications
- Remote Access Monitor and control via network connectivity
- Modular Design Easy expansion and customization
- High Filtration Efficiency Ensures clean and dry air supply
- Industry 4.0 Ready Supports smart factory integration
- 🔹 Specifications (Specs)
- Label Value
- Input Pressure 2 – 16 Bar
- Output Pressure 0.5 – 10 Bar (Adjustable)
- Max Flow Capacity Up to 5000 LPM (Scalable)
- Filtration 5 Micron / 40 Micron
- Regulation Accuracy ±0.2 Bar
- Lubrication Adjustable Oil Mist
- Operating Temperature 5°C to 60°C
- Control System PLC / HMI / IIoT
- Communication Modbus / Ethernet / Wi-Fi
- Power Supply 24V DC / 230V AC
- Mounting Type Wall / Panel / Skid Mounted
- 🔹 Product Functions (one per line)

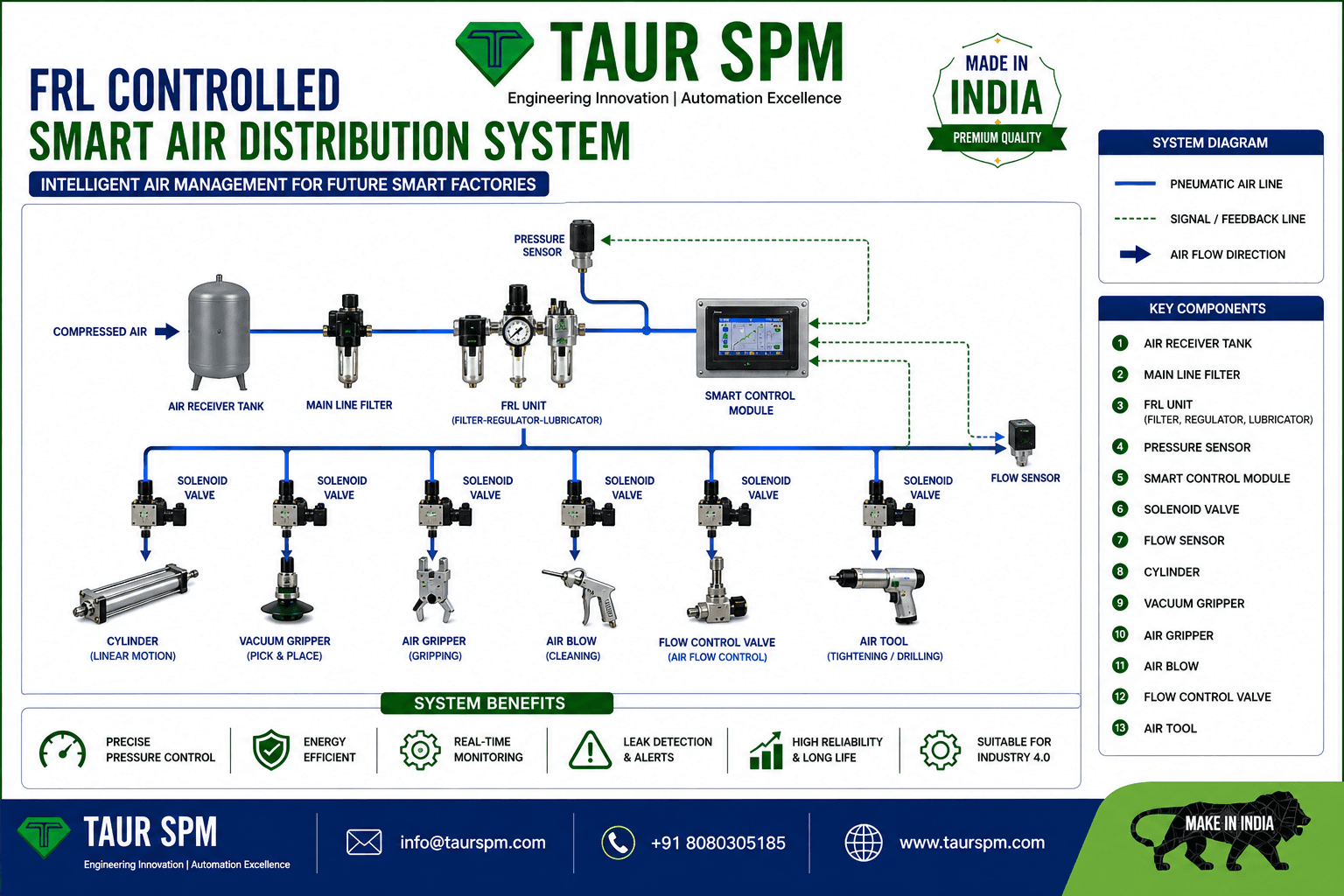

- Compressed Air Intake
- Air Filtration
- Pressure Regulation
- Air Lubrication
- Air Distribution to Multiple Lines
- Real-Time Monitoring
- Leak Detection
- Data Logging & Reporting
- Remote Control & Access
- Energy Optimization
