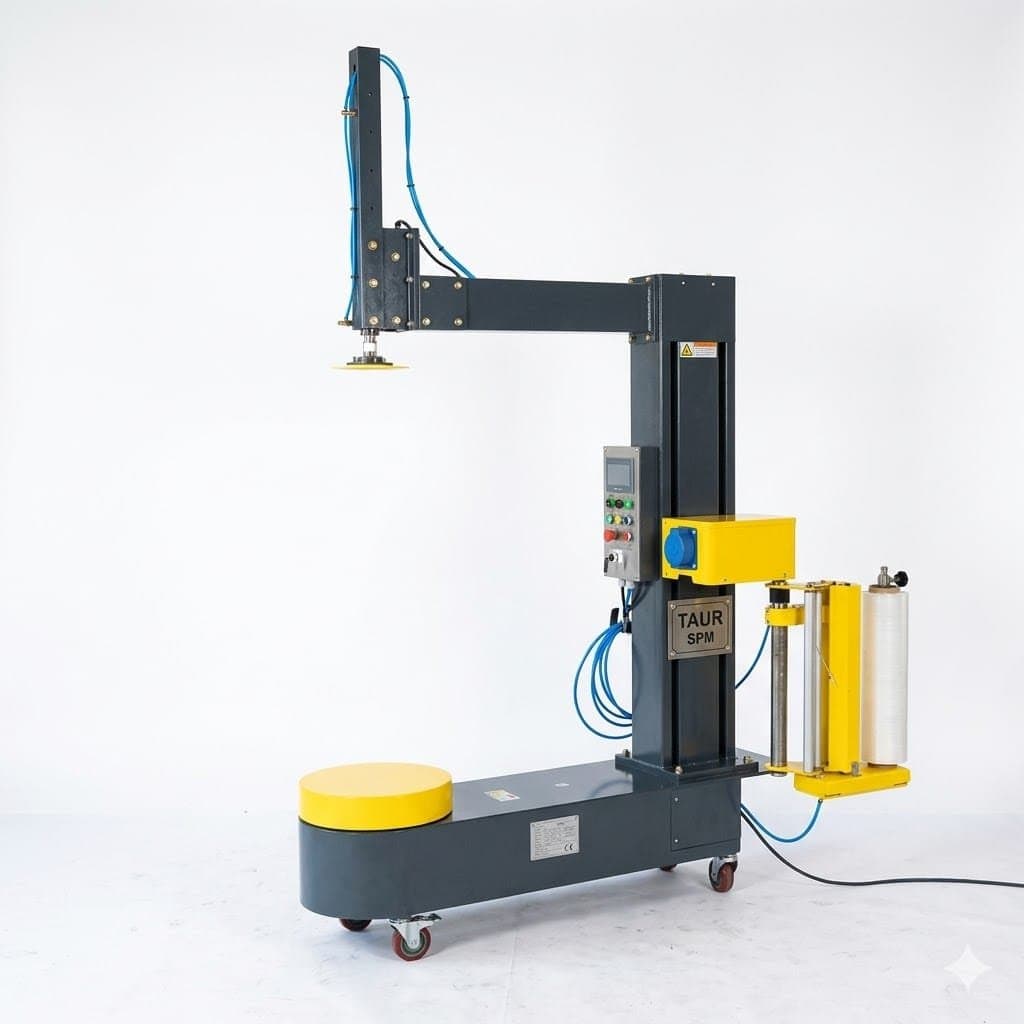

Small Carton Winding Machine (Pressurized)
Compact Pneumatic Carton Stretch Wrapping MachineProduct Overview The 800B Small Carton Winding Machine is a compact and efficient pressurized wrapping solution designed for small cartons and lightweight packages. It is ideal for industries such as e-commerce, logistics, food packaging, and small-scale manufacturing where space-saving and flexibility are essential. Key Performance This machine operates on a single-phase AC power supply and requires an air source of 0.4–0.6 MPa for pressurized wrapping. It offers adjustable rotary speed up to 20 RPM and supports multiple winding height ranges. The machine is compatible with LLDPE stretch film and ensures smooth and consistent wrapping performance. Benefits Its compact size, low noise operation, and ease of use make it highly suitable for small workspaces. The pressurized system improves wrapping tightness, while low maintenance requirements and durable construction ensure long-term reliability and cost efficiency.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
▼ Function
- Small carton wrapping
- Pressurized film application
- Rotary wrapping motion
- Speed adjustment
- Pneumatic operation
- Noise-controlled performance
- Flexible height wrapping
- Compact packaging solution
- Energy-efficient operation
- Secure load stabilization
▼ Product Parameters
| Parameter | Value | Available customisation |
|---|---|---|
| Machine Type | Small Carton Winding Machine (Pressurized) | |
| Power Supply | 1 Phase, AC 220/110V, 50/60Hz | |
| Air Source | 0.4 – 0.6 MPa | |
| Rotary Speed | 0 – 20 RPM | |
| Mesa Height | 650 mm | |
| Wheel Diameter | 400 mm | |
| Winding Height | 400–500 mm / 500–650 mm | |
| Packing Material | LLDPE Stretch Film | |
| Film Width | ≤500 mm | |
| Film Outer Diameter | ≤280 mm | |
| Noise Level | ≤75 dB | |
| Working Environment | Humidity ≤98%, Temp -10℃ to 40℃ |
▼ Features
Compact Design
Space-saving structure ideal for small work areas
Pressurized Wrapping
Ensures tight and secure film application
Adjustable Speed
Rotary speed up to 20 RPM
Pneumatic Operation
Requires air source for efficient performance
Low Noise
Operates at ≤75 dB for quieter environment
Flexible Height Range
Supports multiple carton heights
Film Compatibility
Works with LLDPE stretch film
Easy Operation
Simple controls for user convenience
Energy Efficient
Low power consumption system
Durable Build
Designed for long-term industrial use
