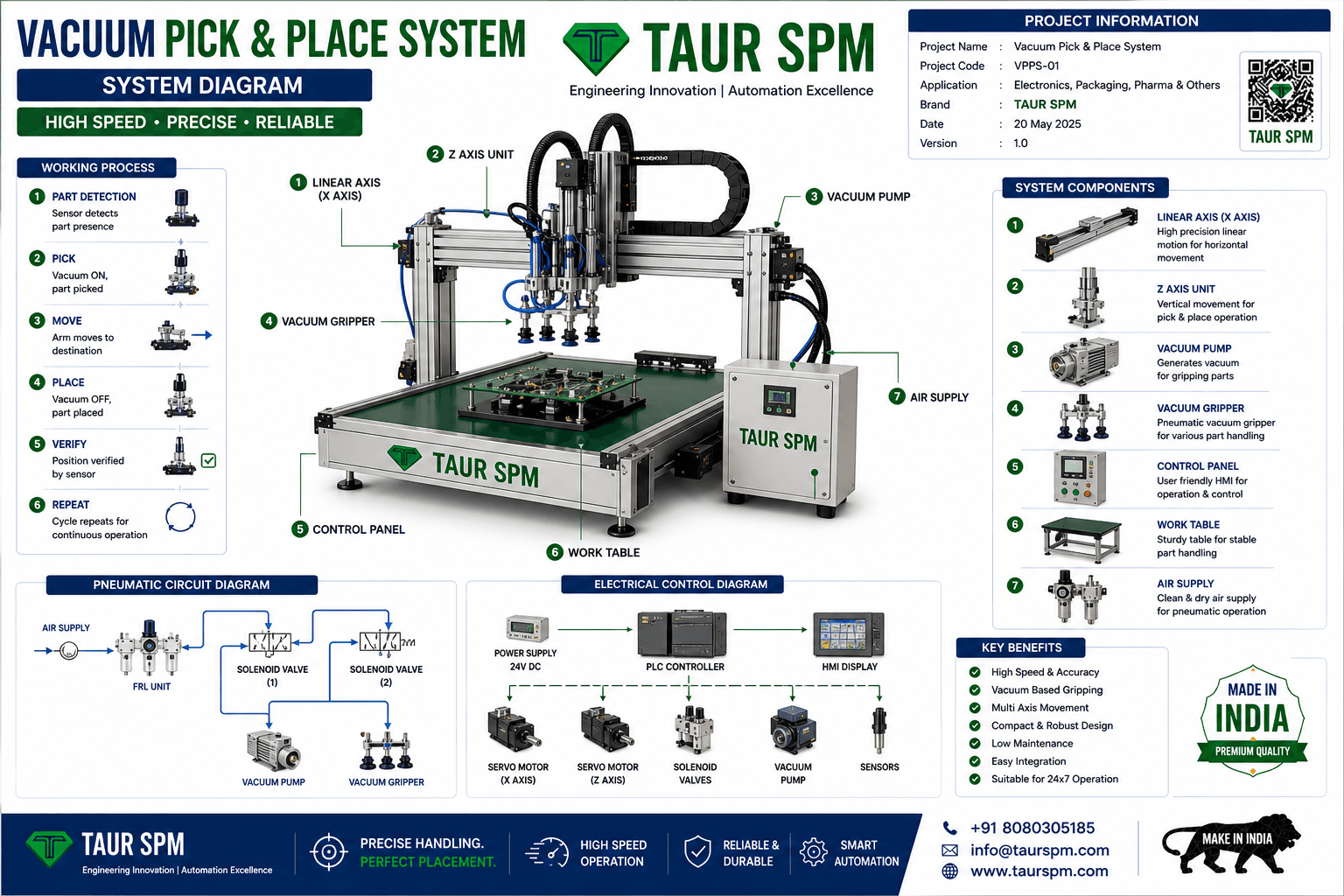

VPPS-01 Vacuum Pick & Place System
High Speed | Precise | Reliable Handling SolutionParagraph 1: The TAUR SPM Vacuum Pick & Place System is an advanced automation solution designed for high-speed, precise, and gentle handling of components. It is widely used in electronics, packaging, pharmaceutical, and consumer goods industries for efficient pick-and-place operations. Paragraph 2: The system features vacuum-based gripping with high accuracy and repeatability of ±0.02 mm. It supports payload capacity from 0.1 kg to 5 kg (customizable) and operates at speeds up to 1500 mm/sec. Equipped with PLC/HMI control, servo/stepper-driven motion, and vacuum pressure range of -0.6 to -0.9 bar, it ensures consistent and reliable performance. Paragraph 3: With gentle handling and zero product damage, the system increases productivity while reducing manual labor and cycle time. Its modular design allows easy integration into existing production lines, offering energy efficiency, low maintenance, and continuous 24/7 operation.
For any question or doubt, please feel free to contact us and we look forward to hearing from you!
â–¼ Function
- 🔹 Features
- Feature Title Description
- High-Speed Operation Fast pick-and-place cycle for improved productivity
- Vacuum-Based Gripping Gentle handling with zero damage
- High Accuracy Repeatability up to ±0.02 mm
- Multi-Axis Movement Supports complex positioning tasks
- Easy Integration Compatible with automation lines
- Energy Efficient Optimized vacuum and power consumption
- User-Friendly Control PLC + HMI interface
- Compact & Modular Design Flexible and space-saving system
- 🔹 Specifications (Specs)
- Label Value
- Working Area (X × Y × Z) 200 × 200 × 100 mm to 1200 × 800 × 300 mm (Customizable)
- Payload Capacity 0.1 kg – 5 kg (Customizable)
- Repeatability ±0.02 mm
- Speed Up to 1500 mm/sec
- Vacuum Pressure -0.6 to -0.9 Bar
- Air Supply 4 – 6 Bar, Clean & Dry Air
- Control System PLC / HMI
- Power Supply 230V AC / 50Hz / 1 Phase (Optional 415V / 3 Phase)
- Drive System Servo / Stepper Motor
- End Effector Vacuum Gripper (Customizable)
- 🔹 Product Functions (one per line)
- Part Detection
- Vacuum Pick Operation
- Component Transfer
- Precise Placement
- Position Verification
- Cycle Repetition
- Multi-Axis Movement
- Automated Handling
- Production Line Integration
- Continuous Operation
